FHD-OAG MINI optical splitter

FHD-OAG MINI from Player One Astronomy

The FHD-OAG MINI from Player One Astronomy is a compact, high-performance optical divider designed for astronomical imaging and precise guidance. It is particularly suited to astrophotographers using Ares series or planetary cameras.

Key features

• Large-format prism :
  • Dimensions : 8 x 14 mm, close to 16:9 format.
  • Prism height : 8 mm, allowing a position close to the center of the optical path to maximize light capture.
  • Material : 6061-T6 aluminum, for strength and lightness.
• Optical length (draft) : 17.5 mm, optimized for integration in an optical chain without compromising balance.
• Threads :
  • Input (telescope side) : M48 or M54.
  • Release: Compatible with various imaging accessories.

Technological highlights

1. Vignetting-free design: The wide, well-positioned prism eliminates vignetting, even with modern sensors like those on the Xena-M camera.
2. Flexible installation : Compatible with a variety of accessories such as planetary cameras or filter wheels.
3. Robust, lightweight construction: Tough aluminum for maximum durability yet easy handling.

Compatibility

• Designed for Ares series cameras and Player One Astronomy planetary cameras.
• Ideal for configurations requiring precise guidance with a main telescope.

Applications

• Precise guidance for long-focus astrophotography.
• Planetary and deep-sky imaging in a compact configuration.

Additional benefits

• Compact, lightweight design: Easy to integrate into existing configurations.
• Optimized anti-vignetting system: For modern sensors.
• Suitable for astrophotographers: Looking for a reliable tool to combine guidance and imaging.

The FHD-OAG MINI is an excellent choice for astrophotographers looking for a compact, precise optical divider compatible with modern equipment.

Additional Official Specifications

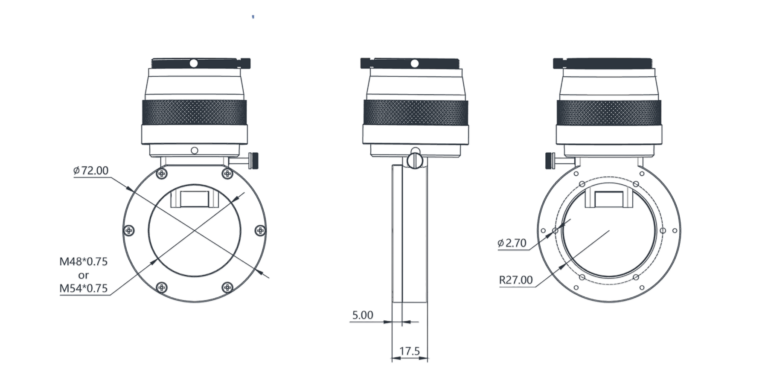

Manufacturer's illustration.
