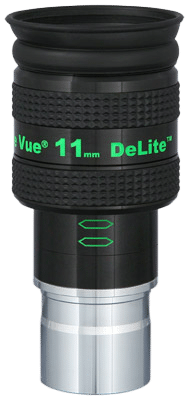

Tele Vue DeLite 11 mm: focal length 11 mm, apparent field of view 62°, 1.25-inch barrel, and 20 mm eye relief. Part number EDE-11.0.
CHF 348.00incl. Swiss VAT
Reference EDE-11.0
The Tele Vue DeLite 11 mm is an 11-mm astronomical eyepiece offering an apparent field of 62°. It mounts on a 1.25-inch barrel and has an eye relief of 20 mm. This configuration is worth considering for star clusters, compact deep-sky objects, and general-purpose observing, depending on your telescope’s focal length.
The DeLite series was developed as a more compact alternative to the Delos series. With an apparent field of view of 62° and an eye relief of 20 mm, it prioritizes a comfortable viewing position over achieving the widest possible apparent field of view.
| Manufacturer reference | EDE-11.0 |
|---|---|
| Family | DeLite |
| Focal length | 11 mm |
| Apparent field | 62° |
| Flow | 1.25 inches |
| Eye Discharge | 20 mm |
| Field diaphragm | 11.7 mm |
| Weight | 0.44 lb / 7.1 oz |
What is the magnification with this eyepiece?
With a telescope that has a focal length of 1,000 mm, this eyepiece provides approximately 91× magnification. Magnification is calculated by dividing the telescope’s focal length by that of the eyepiece.
Is it compatible with my telescope?
It uses a 1.25-inch mount. In a 2-inch eyepiece holder, a suitable adapter is required. The ability to focus also depends on the optical path of the accessories.
Can you observe things with glasses?
The specified eye relief is 20 mm. Comfort when wearing glasses also depends on their shape and the position of the eye; trying them on is always better than relying on a universal guarantee. The Tele Vue chart indicates DIOPTRX compatibility; this astigmatism corrector is optional.
Is the apparent field the field visible in the sky?
No. The apparent field of view of 62° describes the view through the eyepiece. The actual field of view depends on the telescope; the 11.7-mm field stop is the value to use to calculate it.
Check the focus travel, the focus range, the maximum weight your setup can support, and the compatibility of filters or correctors. The product offered is a Tele Vue DeLite 11 mm eyepiece; the accessories listed are optional. The availability shown reflects our supplier’s status at the time of the last check and does not represent a reserved quantity.
Features and Compatibility: Tele Vue EDE-11.0 Official Specifications Sheet.
