Tele Vue Delos 12 mm: focal length 12 mm, apparent field of view 72°, 1.25-inch thread, and 20 mm eye relief. Part number EDL-12.0.
CHF 478.00incl. Swiss VAT
Part Number EDL-12.0

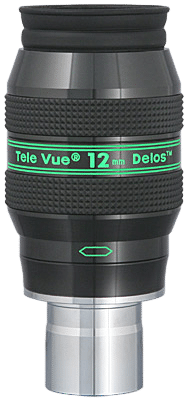

The Delos 12 mm Eyepiece is a 12-mm astronomical eyepiece offering an apparent field of 72°. It mounts on a 1.25-inch barrel and has an eye relief of 20 mm. This configuration is worth considering for star clusters, compact deep-sky objects, and general-purpose observing, depending on your telescope’s focal length.
The Delos series combines a 72° field of view with an adjustable eyecup. The height adjustment helps you find the correct eye position and minimizes stray light around the lens. Be sure to check the specific specifications for this focal length rather than assuming they are the same as those for another Delos model.
| Manufacturer reference | EDL-12.0 |
|---|---|
| Family | Delos |
| Focal length | 12 mm |
| Apparent field | 72° |
| Flow | 1.25 inches |
| Eye Discharge | 20 mm |
| Field diaphragm | 15 mm |
| Weight | 0.9 lb / 14.4 oz |
What is the magnification with this eyepiece?
With a telescope that has a focal length of 1,000 mm, this eyepiece provides approximately 83× magnification. The magnification is calculated by dividing the telescope's focal length by that of the eyepiece.
Is it compatible with my telescope?
It uses a 1.25-inch mount. In a 2-inch eyepiece holder, a suitable adapter is required. The ability to focus also depends on the optical path of the accessories.
Can you observe things with glasses?
The specified eye relief is 20 mm. Comfort when wearing glasses also depends on their shape and the position of the eye; trying them on is always better than relying on a universal guarantee. The Tele Vue chart indicates DIOPTRX compatibility; this astigmatism corrector is optional.
Is the apparent field the field visible in the sky?
No. The apparent field of view of 72° describes the view through the eyepiece. The actual field of view depends on the telescope; the 15-mm field stop is the value to use to calculate it.
Check the focus travel, the focus adjustment range, the maximum weight your setup can support, and the compatibility of filters or correctors. The product offered is a Tele Vue Delos 12 mm eyepiece; the accessories listed are optional. The availability shown reflects our supplier’s status at the time of the last check and does not indicate a reserved quantity.
Features and Compatibility: Tele Vue EDL-12.0 Official Spec Sheet.
