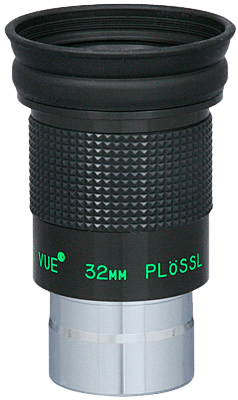

Tele Vue Plössl 32 mm: focal length 32 mm, apparent field of view 50°, 1.25-inch barrel, and eye relief 22 mm. Part number EPL-32.0.
CHF 208.00incl. Swiss VAT
Part Number EPL-32.0
The 32 mm Plössl Eyepiece is a 32-mm astronomical eyepiece offering an apparent field of 50°. It mounts on a 1.25-inch barrel and has an eye relief of 22 mm. This configuration is worth considering for star fields and extended deep-sky objects, depending on your telescope's focal length.
The Plössl formula provides a way to design a range of magnifications without seeking an extreme apparent field of view. Pay particular attention to the eye relief: it varies with the focal length and determines the position of the eye.
| Manufacturer reference | EPL-32.0 |
|---|---|
| Family | Plössl |
| Focal length | 32 mm |
| Apparent field | 50° |
| Flow | 1.25 inches |
| Eye Discharge | 22 mm |
| Field diaphragm | 27 mm |
| Weight | 0.39 lb / 6.2 oz |
What is the magnification with this eyepiece?
With a telescope that has a focal length of 1,000 mm, this eyepiece provides approximately 31× magnification. The magnification is calculated by dividing the telescope’s focal length by that of the eyepiece.
Is it compatible with my telescope?
It uses a 1.25-inch mount. In a 2-inch eyepiece holder, a suitable adapter is required. The ability to focus also depends on the optical path of the accessories.
Can you observe things with glasses?
The specified eye relief is 22 mm. Comfort when wearing glasses also depends on the shape of the glasses and the position of the eye; trying them on is always better than relying on a universal guarantee. The Tele Vue chart indicates DIOPTRX compatibility; this astigmatism corrector is optional.
Is the apparent field the field visible in the sky?
No. The apparent field of view of 50° describes the view through the eyepiece. The actual field of view depends on the telescope; the 27-mm field stop is the value to use to calculate it.
Check the focus travel, the focus adjustment range, the maximum weight your mount can support, and the compatibility of filters or correctors. The product offered is a Tele Vue Plössl 32 mm eyepiece; the accessories listed are optional. The availability shown reflects our supplier’s status at the time of the last check and does not indicate a reserved quantity.
Features and Compatibility: Tele Vue EPL-32.0 Official Spec Sheet.
