CHF 1'329.00
Available by special order — estimated delivery time: 10 days to 3 weeks

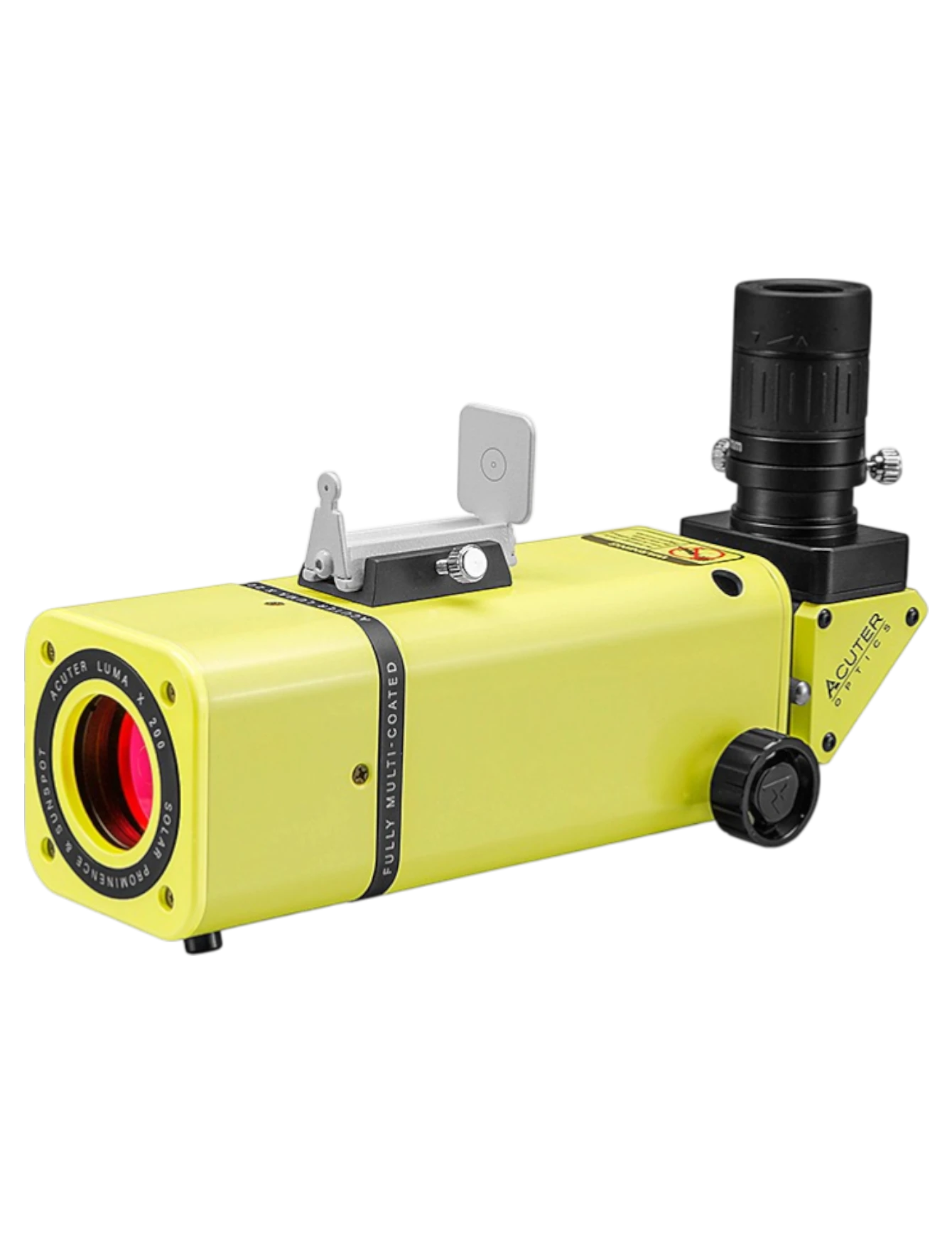

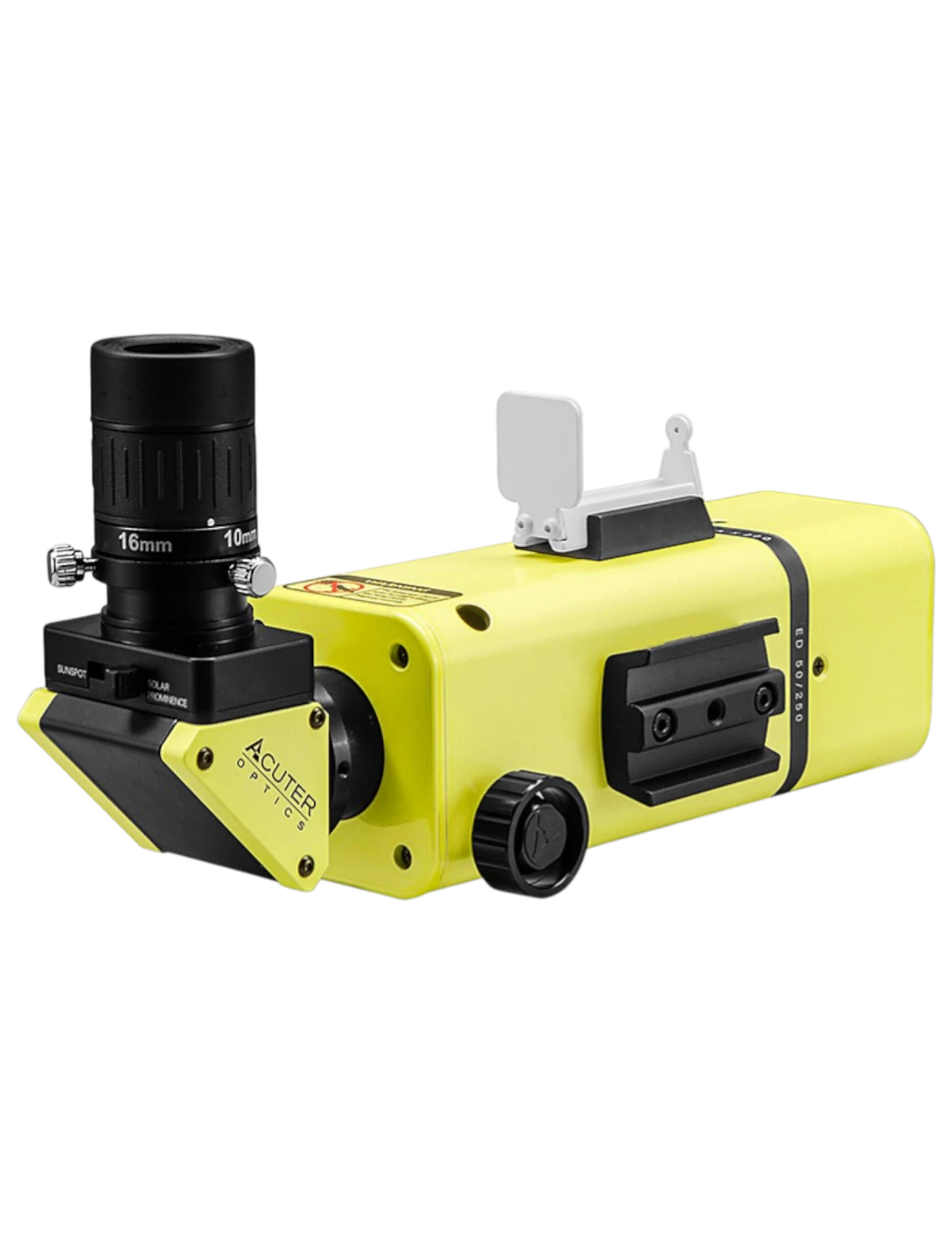

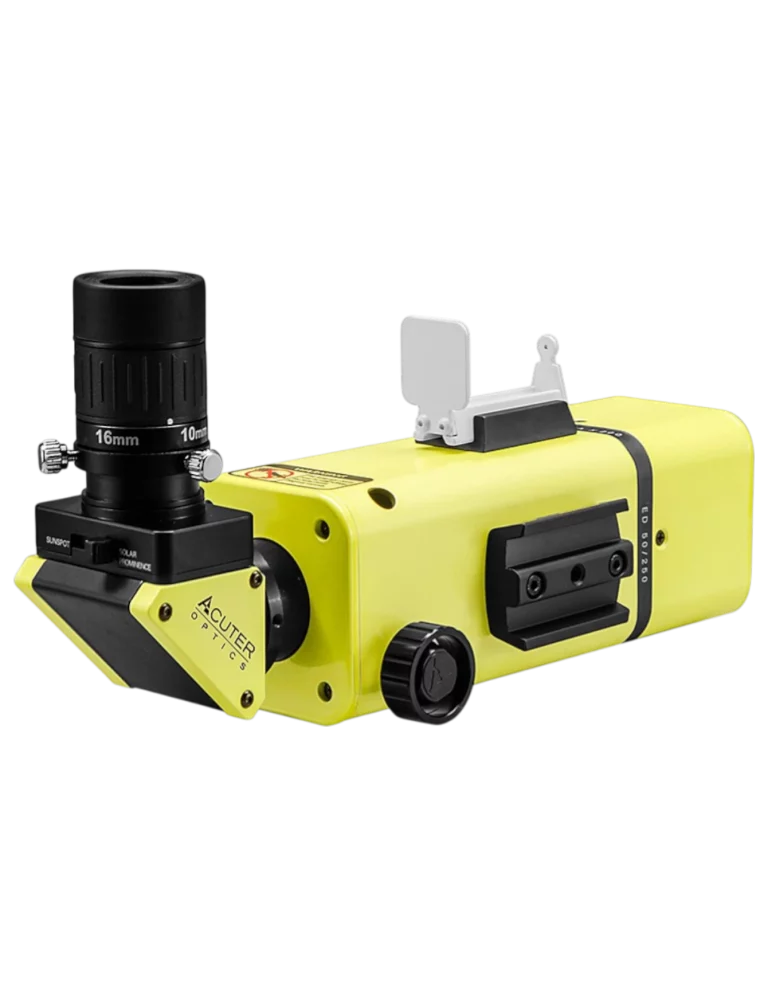

Acuter, the world-renowned brand for innovative, high-quality astronomical instruments, presents the Luma-X 40ED a revolutionary solar telescope that redefines standards in terms of performance, versatility and accessibility. Designed for both amateur and educational use, this instrument opens the door to detailed observation of our star in complete safety.
The Luma-X 40ED boasts two daring world firsts:
| Innovation | Advantage for the observer |
|---|---|
| Square tube - exclusive design | Rigid, compact and original structure for easy transport |
| Switchable angled return - dual use | Instantly switch between H-Alpha (protuberances) and the white light (sunspots) without changing accessories |
Equipped with a ED (Extra-low Dispersion) glass element, The Luma-X 40ED offers outstanding sharpness, contrast and color fidelity. The fine details of the solar surface - granulation, spicules, filaments - are rendered with impressive precision.
Thanks to its 40 mm front gauge with a bandwidth of less than 0.6 Ångström and its 8 mm blocking filter integrated into the angled reflector, you can observe spectacular solar phenomena in real time: flares, protuberances, spicules, sunspots and much more. All in compliance with safety standards ISO 12312-2:2015.
| Features | Value |
|---|---|
| Optical type | Refractor with H-Alpha standard + ED element |
| Opening | 40 mm |
| Focal length | 250 mm (f/6.25) |
| Magnification (eyepiece supplied) | 15,6× à 50× |
| Zoom eyepiece included (1.25″) | 5 - 16 mm |
| Front standard | Ø 40 mm - bandwidth < 0.6 Å |
| Tuning method | Pressure Tuning |
| Blocking filter | 8 mm |
| Additional internal filters | Green filter + neutral density (sunspot observation) |
| Lens holder | Crayford |
| Dovetail | 45 mm with ¼» photo thread» |
| Camera compatibility | CCD cameras with 1.25″ adapter - backfocus ≤ 25 mm |
| Safety certification | ISO 12312-2:2015 |
| Tube length (OTA) | 275 mm |
| Tube weight (OTA) | 1.9 kg |
| Total shipping weight | 4 kg (40 × 30 × 20 cm) |
| Accessories included | Description |
|---|---|
| Luma-X 40ED telescope | Complete optical tube with integrated H-Alpha standard |
| Dual-purpose 90° elbow fitting | H-Alpha / white light switchable (built-in 8 mm blocking filter) |
| Safety solar finder | Pointing safely at the Sun without looking directly |
| Light shield | Increased visual comfort during observation |
| 5 - 16 mm zoom eyepiece | Variable magnification without changing eyepieces |
| Universal smartphone adapter | Photograph the Sun directly through the eyepiece |
| Dovetail 45 mm | Compatible with standard mounts, ¼» thread for photo tripods |
| Rigid carrying case | Optimum protection for transport and storage |
For automatic sun tracking, the mount Sky-Watcher SolarQuest Go-To/Tracking is highly recommended (sold separately). It provides precise motorized pointing and tracking, ideal for extended observation and solar astrophotography.
Observing the Sun involves serious risks. Inappropriate use can lead to irreversible eye damage. The 8 mm blocking filter integrated into the angled transmission is an integral part of the Luma-X 40ED's safety system. Never use any other angle drive for solar observation with this instrument. Strictly follow the instructions in the user manual.
