Ares-M PRO - 9MP CMOS monochrome

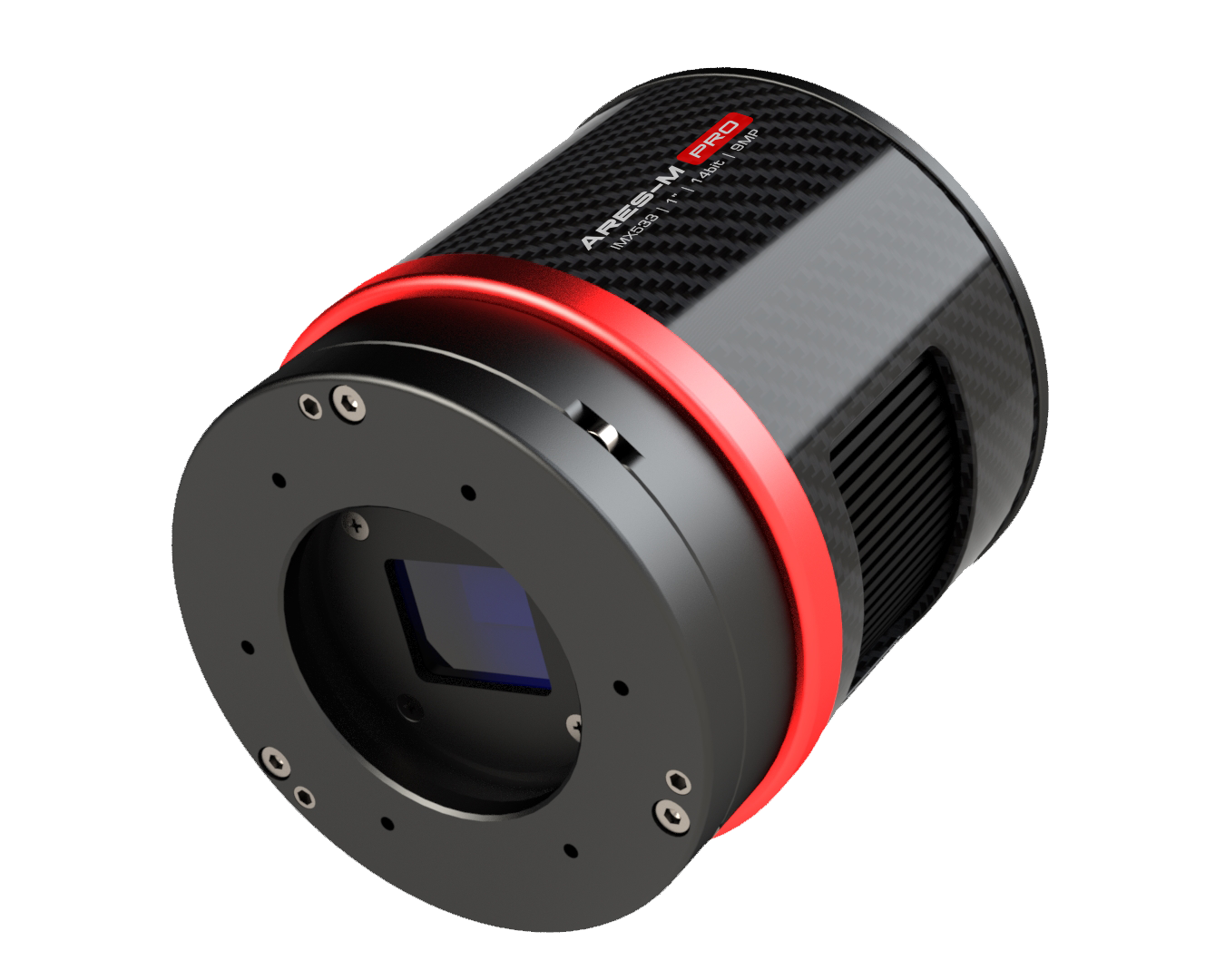

The Ares-M PRO camera from Player One Astronomy

Visit Ares-M PROdeveloped by Player One Astronomyis a state-of-the-art cooled monochrome camera designed for deep-sky imaging (DSO), as well as solar and lunar observation. Equipped with the Sony IMX533 CMOS sensor, it offers outstanding performance thanks to its advanced technology and innovative design.

Main technical data

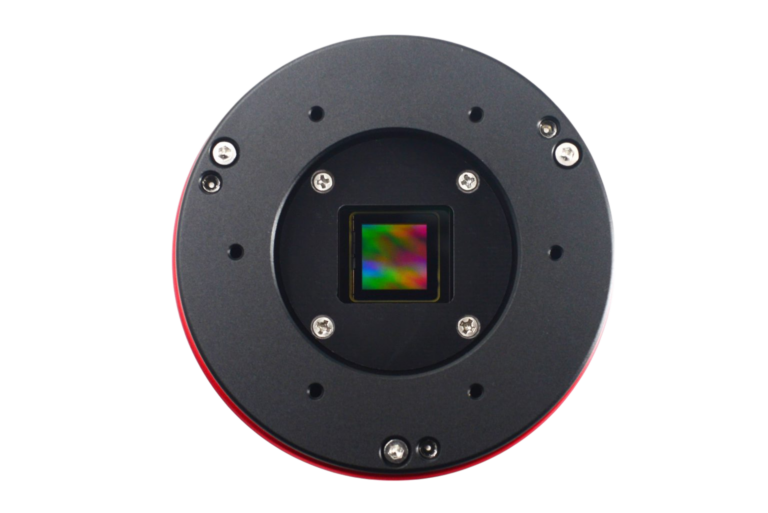

• Sony IMX533 CMOS sensor This monochrome sensor in 1" square format (11.31 mm x 11.31 mm) offers 9 megapixel resolution (3008 x 3008 pixels) with a 16 mm diagonal. Its 3.76 µm pixel size guarantees high sensitivity and precise reproduction of details.
• Full Well depth With an impressive 73 ke capacity, 1.5 times greater than that of the IMX533 Basic model, this camera captures high-dynamic images without saturation.
• Wide dynamic range Ideal for capturing the subtle nuances of dark and bright areas, thanks to reduced read noise of up to 1 e- in LRN (Low Read Noise) mode.
• Advanced Peltier Cooling (TEC) The two-stage cooling system achieves a delta T of 35-40°C below ambient temperature, effectively reducing thermal noise for long exposures.

Imaging performance

• Fast acquisition rate The camera can achieve up to 43 FPS in RAW8 mode and 19.5 FPS in RAW16, making it ideal for applications requiring high frame rates.
• Dual sampling modes :
  • Normal mode Optimized for planetary imaging with high FPS.
  • LRN (Low Read Noise) mode Reduces playback noise while increasing dynamic range, perfect for deep-sky imaging.
• Non-Amp-Glow The Ares-M PRO is totally amp-glow-free, guaranteeing a clean background and facilitating high-quality images.

Technological advances

• STARVIS technology Backlit architecture maximizes light sensitivity and minimizes noise.
• Integrated DDR3 cache memory (512 MB) USB 2.0: Stabilizes data transmission, reduces playback noise and prevents image loss, even with a USB 2.0 port.
• Integrated anti-fog An anti-fog heating system prevents condensation on the sensor during long imaging sessions.

Ergonomic design

The innovative design of the Ares-M PRO includes :

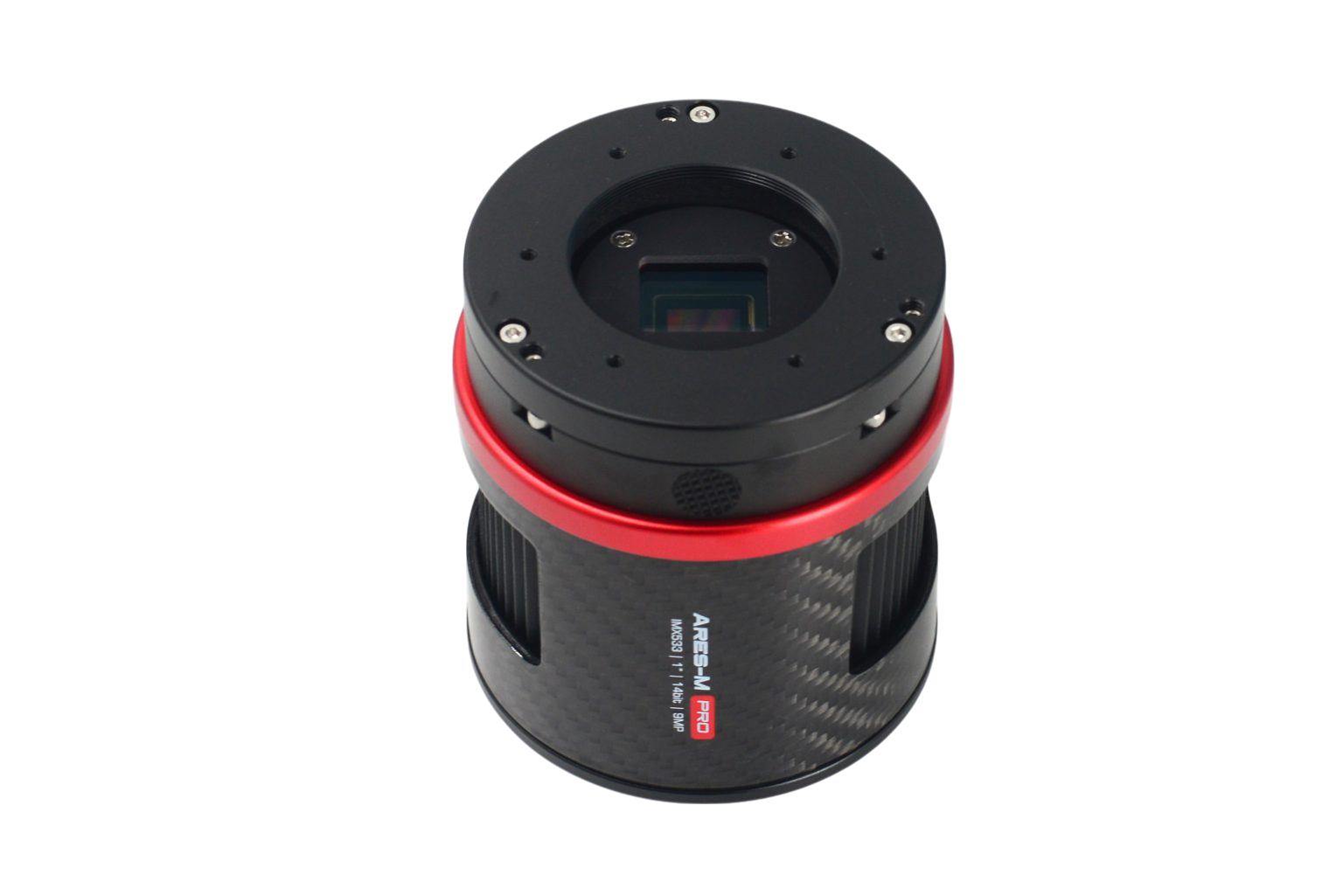

• A round carbon-fiber caselight (420 g) and robust.
• An adjustable anti-tilt plate for precise adjustment of sensor parallelism to guarantee perfect field flatness.
• Iconic red and black finish combining aesthetics and functionality.

Applications

Visit Ares-M PRO is ideal for :

• Deep sky imaging (nebulae, galaxies).
• Solar and lunar observation thanks to its square sensor, which makes it easy to capture complete discs of the Sun or Moon with short-focus refractors.
• Effective mosaic creation thanks to its square format.

Additional highlights

• Compatible with software such as SharpCap Pro for precise control of parameters (fan, cooling, gain).
• USB-C and USB3.0 ports for fast, reliable connectivity.
• Elegant design with iconic red and black finish.

With its top-of-the-range features and technological innovations, the Ares-M PRO is an essential tool for astrophotographers seeking to push back the limits of celestial imaging.
