FocusCube 3 Universal

FocusCube 3 from Pegasus Astro: Advanced Solution for Electronic Telescope Focusing

The FocusCube 3 de Pegasus Astro est une solution avancée et autonome pour la mise au point électronique des télescopes, spécialement conçue pour répondre aux exigences croissantes de l’astrophotographie moderne. Voici une description détaillée de ses caractéristiques techniques et fonctionnalités :

Technical specifications

1. High-resolution stepper motor

• Exceptional precision: Angle de pas de 0,0625° grâce à un moteur à engrenages avec un rapport de réduction de 1:120. Cela permet une mise au point à l’échelle du micron, idéale pour des optiques rapides et des capteurs modernes.
• High torque : 60 Ncm, capable of lifting up to 6 kg of imaging equipment, even when the telescope is pointed at the zenith.
• Low backlash: Mechanical backlash is minimized to ensure precise, reliable focusing.

2. Simplified connectivity

• Single USB-C: A single USB-C connection for power and data, reducing the wiring complexity of your setup.
• Extended software compatibility : Support for ASCOM, ASCOM Alpaca and INDI protocols, enabling integration with software such as NINA, SGPro, Voyager, APT and MaximDL.

3. Integrated temperature sensor

• Thermal sensor : An external digital sensor measures ambient and eyepiece holder temperature in real time, automatically compensating for thermal variations to maintain optimum focus.

4. Easily reproducible V-curve

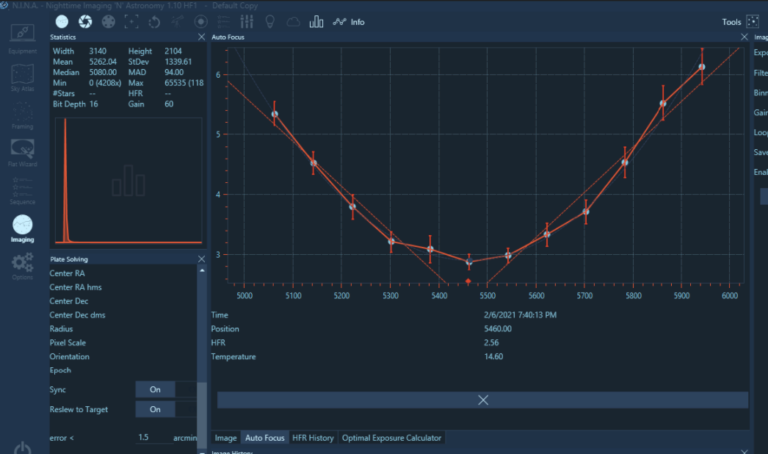

• V-Curve autofocus : FocusCube 3 facilitates the generation of precise V-curves, essential for achieving perfect focus during autofocus.

5. Simple, compact installation

• Compact case : The 52 x 58 x 35 mm housing is easily mounted on the SCT telescope's focuser using a dedicated bracket.
• Cables included : The device is supplied with the necessary power and USB cables.

Compatibility Tested

Installation of the FocusCube 3's universal L-bracket has been validated on the following eyepiece holders, guaranteeing fast, effortless integration:

• Baader Diamond Steeltrack
• Baader Steeltrack
• Explore Scientific Focuser
• Askar Telescopes Focusers
• MoonLite Focusers
• Skywatcher Esprit Series Focuser
• StarField Optics Focusers
• Starlight Feathertouch Series
• Stellarvue Focusers
• Takahashi FS-60, TSA-120, Epsilon Focusers
• Takahashi FSQ & TOA Focuser
• Vixen ED81S
• William Optics GT71
• William Optics RedCat

Package contents

• A FocusCube 3 motor
• A digital temperature sensor
• A universal aluminum support
• Five mechanical couplers
• USB-C cable
• Power cable (12V)

Key benefits

• Full autonomy : No separate controller required; everything is integrated into a compact, robust housing.
• Versatility : Adaptable to almost any type of telescope thanks to its universal mount.
• Greater precision : Ideal for demanding astrophotographers requiring stable focus despite temperature fluctuations.

Conclusion

In conclusion, the FocusCube 3 represents a significant advance in electronic focusing systems for telescopes. Its micrometric precision, robustness and ease of use make it an essential choice for both amateur and professional astronomers.

Reference and Configuration

How do I check for compatibility?

Before setting up your system, compare the exact part number, generation, and connection types of your equipment with the manufacturer’s documentation. An accessory from a different generation is not necessarily interchangeable.

Documentation: Pegasus Astro, manufacturer information. To verify a specific configuration, provide the reference number PEG-FC3-UNIV to Deep Space Astronomy.
