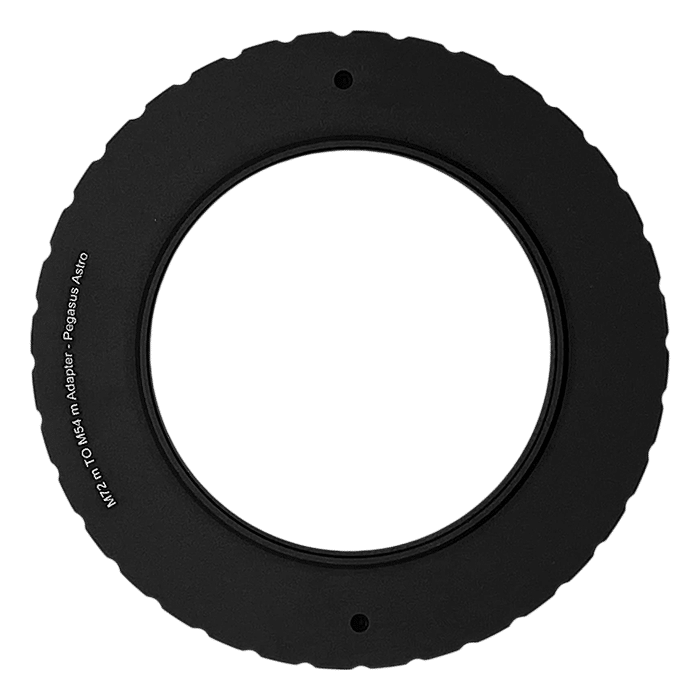

M72 male to M54 male adapter. Manufacturer's part number: PEG-ADAPT-M72M-M54M.
CHF 38.34incl. Swiss VAT
Part Number PEG-ADAPT-M72M-M54M
Will be ordered for you
Delivery time: 5 to 7 business days
Estimated shipping: Between November 12 and 13, 2026
The model M72 Male to M54 Male Adapter, part number PEG-ADAPT-M72M-M54M, allows you to set up a mechanical connection that matches this configuration. Both sides of the connector and the instrument model must be checked before assembly.
| Brand | Pegasus Astro |
|---|---|
| Manufacturer reference | PEG-ADAPT-M72M-M54M |
| Model / Configuration | M72 Male to M54 Male Adapter |
| Connection on Side 1 | M72 male |
| Connection on Side 2 | M54 male |
| Specified optical thickness | 8.0 mm |
Compare the connections on your equipment with the configuration shown above. A matching diameter is not enough: the male/female orientation, the thread pitch, and the available space in the optical assembly must all match. Do not use force to engage a ring.
Documentation: Pegasus Astro, manufacturer information. To verify a specific configuration, provide the part number PEG-ADAPT-M72M-M54M to Deep Space Astronomy.
