Motor Focus Kit v2 Universal. Manufacturer's part number: PEG-MFKv2-UNIV.
CHF 124
Référence PEG-MFKv2-UNIV
Available by special order — estimated delivery time: 2 weeks

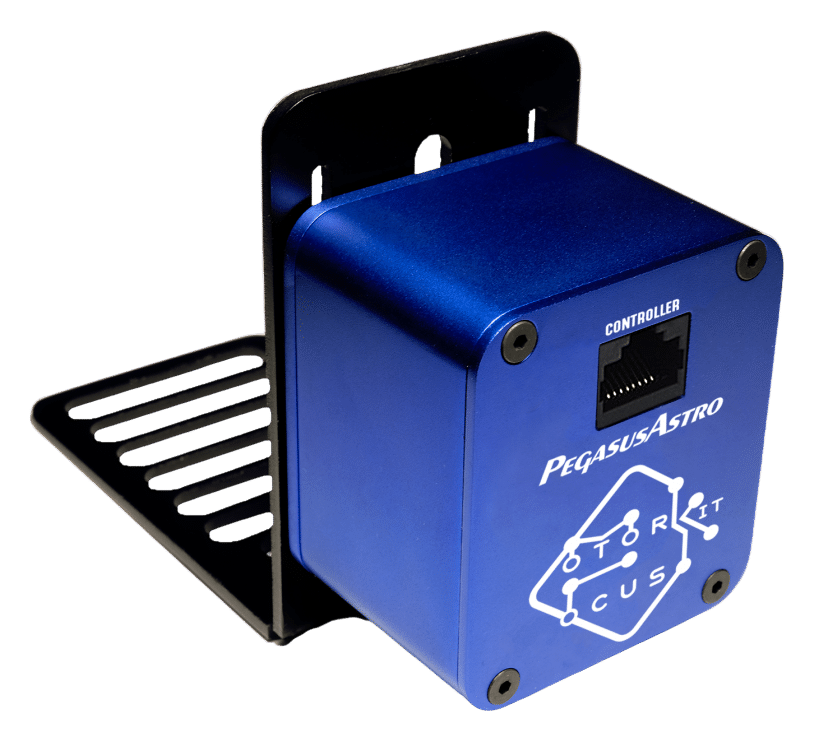

This kit motorizes an eyepiece holder using a geared motor and a black anodized aluminum universal bracket. Five couplers ranging from 4 to 8 mm allow you to select the connector that matches the eyepiece holder’s axis. The lower part of the bracket can be replaced with the thinner rail provided. Please note: A separate motor controller is required; this kit is not a standalone FocusCube.
| Brand | Pegasus Astro |
|---|---|
| Manufacturer reference | PEG-MFKv2-UNIV |
| Model / Configuration | Motor Focus Kit v2 Universal |
| Controller required | DMFC, Ultimate Powerbox v1/v2/v3, or eXternal Motor Controller |
| Engine Fuel Supply | 12 V DC |
| Motor current | 0.27 A |
| Reduction | 1:120 |
| Couplers included | 5 couplers, 4 to 8 mm |
| Cable included | RJ45 to RJ45, 1 m |
| Mass of the engine/mount/coupler assembly | 350 g |
Before setting up your system, compare the exact part number, generation, and connection types of your equipment with the manufacturer’s documentation. An accessory from a different generation is not necessarily interchangeable.
Documentation: Pegasus Astro, manufacturer information. To verify a specific configuration, provide the reference number PEG-MFKv2-UNIV to Deep Space Astronomy.
