The EAGLE expansion kit for the CPC Deluxe HD 8″ complements an existing PrimaLuceLab setup with an onboard computer, a guide scope, and the components needed to integrate them.
CHF 2'556.08incl. Swiss VAT
Reference EEKCPCHD8
Will be ordered for you
Timeframe: 10 days to 3 weeks
Estimated shipping: Between November 26 and December 1, 2026
The EAGLE expansion kit for the CPC Deluxe HD 8″ complements an existing PrimaLuceLab setup with an onboard computer, a guide scope, and the components needed to integrate them.
PrimaLuceLab explicitly states that this extension cannot be used on its own with the CPC Deluxe HD 8″. It requires one of the two base kits listed. You should therefore check the equipment already installed before selecting this item.
The EAGLE computer replaces the external PC in this setup and centralizes connections and power management. The guide scope and mechanical components support the transition to long exposures of the deep sky. The manufacturer’s detailed specifications list an EAGLE6 S and a 60-mm CompactGuide scope with 80-mm PLUS collars.
| Reference | EEKCPCHD8 |
|---|---|
| Instrument in question | CPC Deluxe HD 8″ |
| Computer | EAGLE6 S |
| Announced Add-ons | Guide ring, mechanical mounting and balancing adapters, cables |
| Prerequisites | SESTO SENSO + ARCO Base Kit or ESATTO + ARCO Base Kit |
PrimaLuceLab Official Fact Sheet
| PLLMORVLP | Vixen and Losmandy PLUS Clamping Jaws; quantity: 1 |
|---|---|
| PLLSAG925 | PLUS Curved Mounts for Celestron and Meade; quantity: 2 |
| PLLLOS350P | Losmandy PLUS 350 mm dovetail; quantity: 2 |
| PLLCG60 | CompactGuide 60 mm with PLUS 80 mm guide clamps; quantity 1 |
| PL1000057 | EAGLE 12.8 V 14 A AC power supply; quantity: 1 |
| EAGLE6S | EAGLE6 S – Onboard computer for astrophotography; quantity: 1 |
| PL1000062 | EAGLE Cable, 5.5 / 2.5 mm, 60 cm, 3 A port; quantity: 1 |
| PL1000063 | EAGLE Cable 5.5 / 2.1 mm, 70 cm, 8 A; quantity: 1 |
| PL1000064 | 25- and 30-cm cable conduits, with 4 cable ties; quantity: 1 |
| CN0000000205 | 50 cm USB-C to USB-A cable; quantity: 1 |
| CN0000000207 | 100 cm Mini USB to USB-A cable; quantity: 1 |
| PL8410111 | Set of 8 M6×10 screws; quantity: 1 |
This configuration corresponds to the kit's part number. Optional accessories are not included in this list.

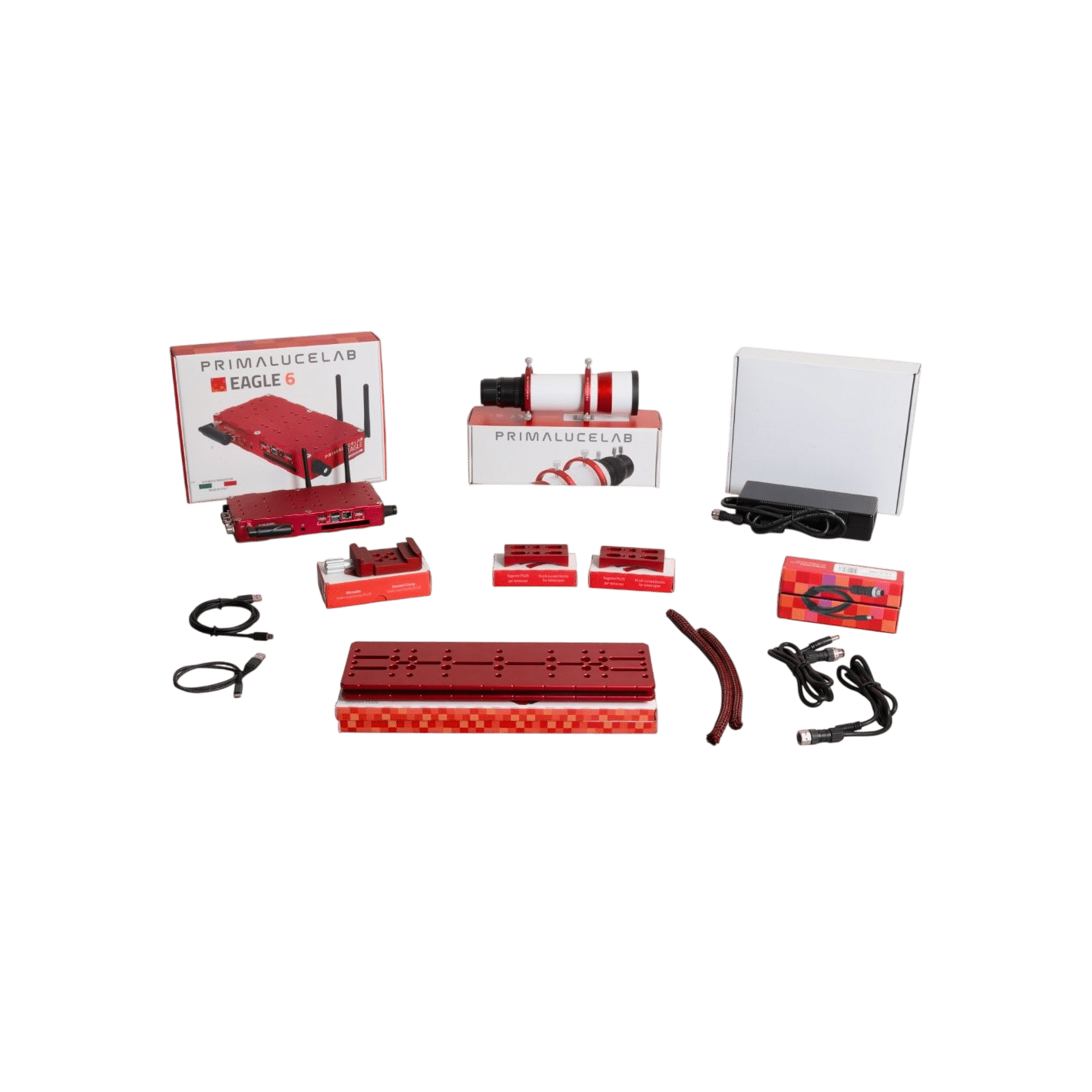

Official production photo: The dimensional variation is not visible in the image.
