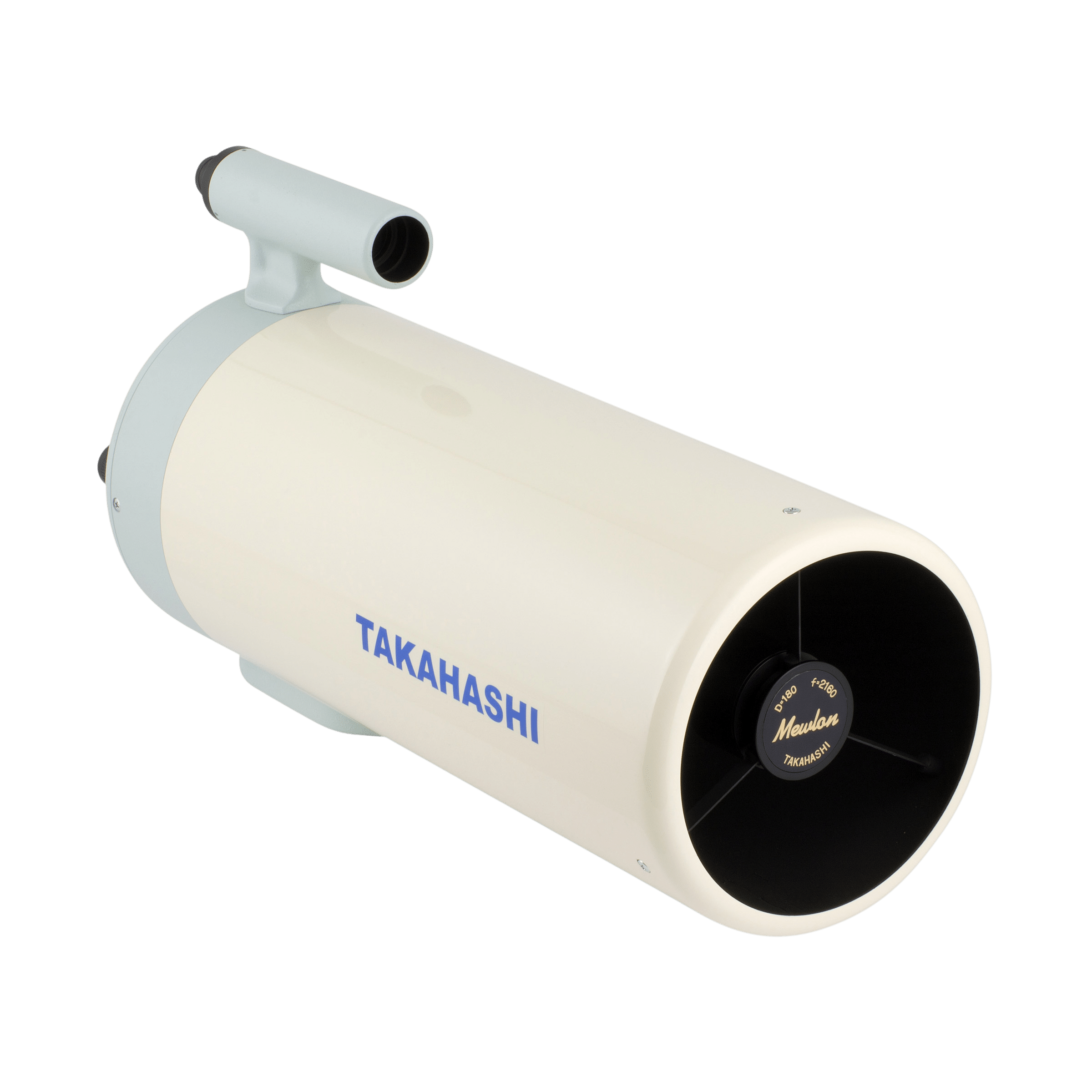

Takahashi Mewlon-180C – 180-mm Dall-Kirkham telescope

Takahashi Mewlon-180C Dall-Kirkham telescope, 180 mm diameter and 2,160 mm focal length at F/D 12, for planetary observation and imaging. Built-in 6×30 finder scope and Vixen-style male and female dovetail mounts.

CHF 1'758.22incl. Swiss VAT

Part Number TLK18100

Will be ordered for you
Delivery time: 5 to 7 business days
Estimated shipping: Between November 24 and 25, 2026

Free shipping in Switzerland on orders of 200 CHF or more
Credit Card · TWINT · PayPal · Invoice · Klarna
Free pickup in Nyon · credit card or cash
1 recommended product for this model
Product description

Product description

Observing and Photographing the Moon and the Planets

The Takahashi Mewlon-180C is a 180-mm Dall-Kirkham telescope. With a focal length of 2,160 mm and an F/D ratio of 12, it is particularly well-suited for planetary observation and imaging. It features an ellipsoidal primary mirror paired with a spherical secondary mirror, housed in a 625-mm-long tube.

Alignment and Focusing

Focusing is achieved by moving the primary mirror. The built-in 6×30 finder scope makes aiming easier; its mount is also designed to serve as a carrying handle.

Assembly and Contents Included

The Mewlon-180C comes with a built-in finder scope and male and female Vixen-style dovetails. These components allow you to prepare the tube for mounting on a mount compatible with this interface.

Takahashi Mewlon-180C Assembly Diagram

Accessories for Your System

Back to the sections
Frequently asked questions

Frequently asked questions

What can you see with the Takahashi Mewlon-180C?

The Moon in great detail, the planets (Jupiter’s bands, Saturn’s rings, Venus’s phases), and double stars: its long focal length naturally provides high magnification. Its 180-mm diameter also allows for viewing some bright clusters and nebulae. Its maximum useful magnification is approximately 360× (2 × the diameter in mm); in practice, atmospheric turbulence often limits observation to lower magnifications.

What eyepieces should you bring?

No eyepiece is included with this model. The magnification is calculated by dividing the telescope's focal length (2160 mm) by that of the eyepiece: for example, a 25 mm eyepiece provides 86× magnification.

Is it easy to carry?

Yes, it's a lightweight instrument: the tube weighs about 6.2 kg and is about 62.5 cm long.

Should we aim it at him?

From time to time, especially after transport: Check the alignment of the two mirrors by observing a star (a bright star that is slightly out of focus, with concentric rings) and adjust it using the secondary mirror screws.

Can we take pictures?

This tube is sold separately: its photographic capabilities depend on the mount you choose. With its long focal length (2160 mm), it is primarily designed for planetary and lunar video imaging on a motorized mount. The tube weighs approximately 6.2 kg: take this into account when considering the mount’s load capacity.

Technical specifications

Technical specifications

Technical specifications

Optical type
Dall-Kirkham
Diameter
180 mm
Focal length
2,160 mm
Focal Ratio (f/D)
f/12.0
Maximum magnification
360 ×
Separating power
0.64″
Lens holder
Focusing by Moving the Primary Mirror
Backfocus
67.2 mm (metal back)
Corrector / Reducer Available
Yes
Tube length
62.5 cm
Tube weight
6.2 kg
Uses
Visual, Planetary
