Takahashi TKA00582: 1.04x MFL FC/FS Corrector
The FC/FS Multi-Flattener corrector is sold separately; this CA-60C ring is used for mounting the FS-60CP. Check the camera connection and focus.
CHF 207.51

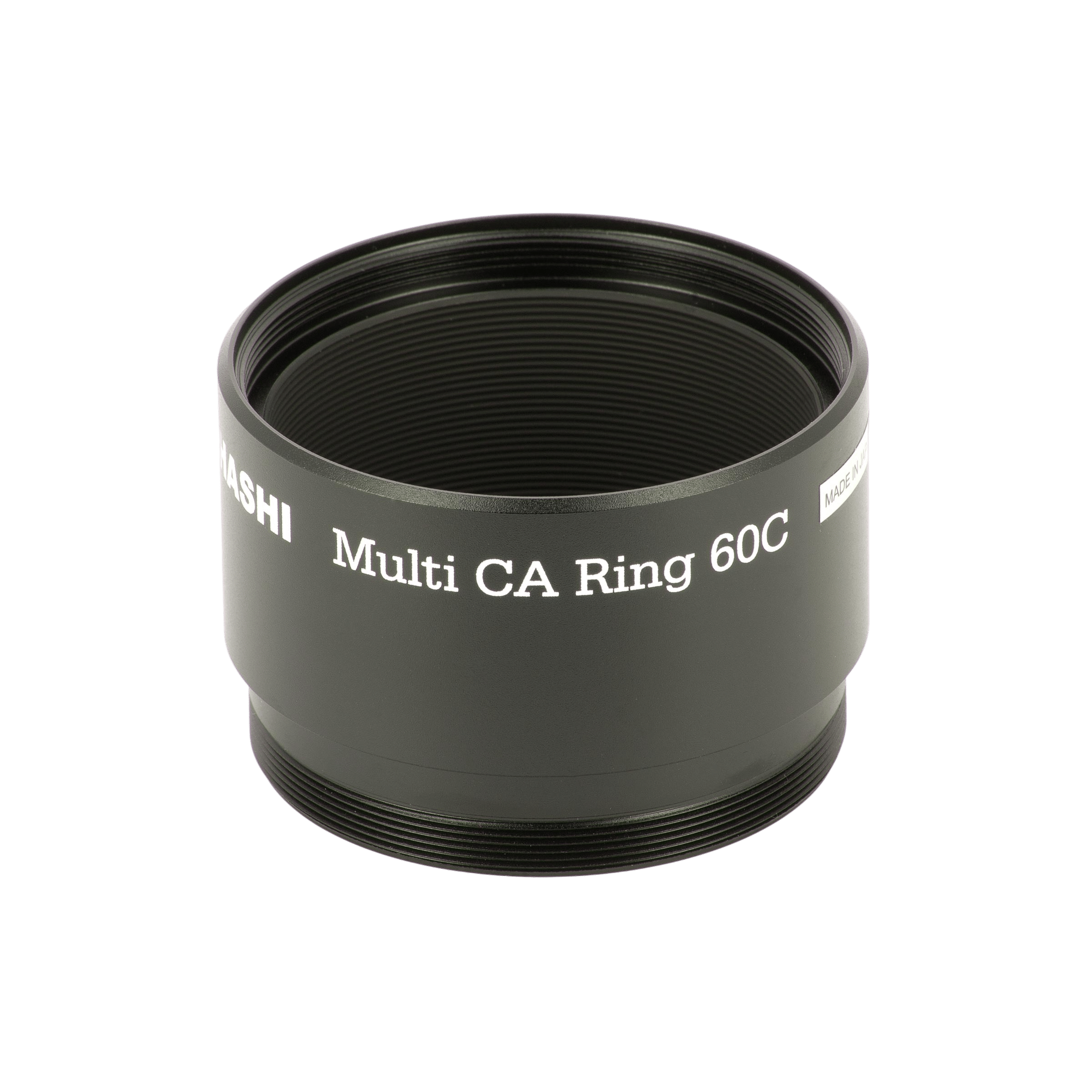

The Takahashi Multi CA-60C adapter ring connects the 1.04× FC/FS Multi-Flattener corrector to the photographic mount of the FS-60CB and FS-60CP. It leaves 56 mm between its rear mounting surface and the sensor, allowing for connection to a camera or an astronomical camera.
CHF 28.50incl. Swiss VAT
Reference TKA20203
For bulk orders
Ring only: to be ordered as part of a future group order
When ordered with other items from the same brand: estimated delivery time of 10 days to 3 weeks
The Takahashi Multi CA-60C adapter ring connects the 1.04× FC/FS Multi-Flattener corrector to the photographic mount of the FS-60CB and FS-60CP. It leaves 56 mm between its rear mounting surface and the sensor, allowing for connection to a camera or an astronomical camera.
Its M52x0.75 female inlet accommodates the corrector, and its M52x0.75 male outlet accommodates the camera-side connector. For a camera, use a Takahashi wide-field T-ring compatible with the FS-60 mount and the camera body mount. A camera with an M48 or M42 interface requires the corresponding thread adapter. The ring’s effective flange focal distance is 31.5 mm, which is distinct from the 56 mm distance to the sensor.
| Features | Value |
|---|---|
| Brand | Takahashi |
| Reference | TKA20203 |
| Model | Multi CA-60C |
| Compatible glasses | FS-60CB and FS-60CP |
| Related corrector | FC/FS Multi-Flattener 1.04× (TKA00582) |
| Distance between the support surface and the sensor | 56 mm with the Multi-Flattener |
| Mechanical Input Interfaces | M52x0.75 female thread |
| Mechanical Output Interface | M52x0.75 male thread |
| Circulation | 31.5 mm |
| Dimensions | Length: 37.5 mm – Diameter: 56 mm |
| Weight | 50 g |
