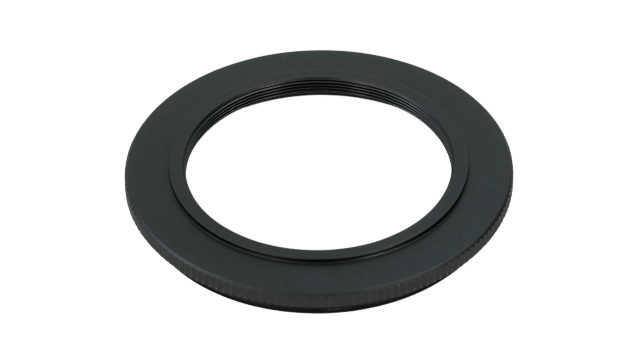

M72-to-M54 camera adapter for connecting the FSQ-80FC to Takahashi DX-WR camera rings, with a 4.5 mm optical path.
CHF 54.33incl. Swiss VAT
Reference TKA00202
For bulk orders
Ring only: to be ordered as part of a future group order
When ordered with other items from the same brand: estimated delivery time of 10 days to 3 weeks
The Takahashi TKA00202 adapter allows you to set up the FSQ-80FC for use with DX-WR series camera rings. It features an M72 male thread on the instrument side and an M54 female thread on the camera side.
The thread on the instrument side has a pitch of 1.0 mm; the thread on the camera side has a pitch of 0.75 mm. The adapter adds an optical path length of 4.5 mm.
In the mounting configuration for the FSQ-80FC, the distance to the sensor is 56.2 mm, measured from the back of the female M54 connector. Next, select the DX-WR adapter ring that matches your camera’s mount and follow the order shown in the Takahashi diagram.
| Features | Value |
|---|---|
| Reference | TKA00202 |
| Function | Photo adapter |
| Documented instrument | FSQ-80FC |
| On the instrument side | M72x1.0 male |
| Camera side | M54x0.75 female |
| Optical path | 4.5 mm |
| Approximate mass | 32 g |
| Distance to the Sensor on the FSQ-80FC | 56.2 mm from the rear face of the M54 |
| Camera rings | Takahashi DX-WR Series |
