Takahashi L Mount for EM-400, EM-500, JP-Z, and NJP mounts, with an accessory plate for equipment mounted in parallel.
CHF 366.94incl. Swiss VAT
Part Number TMP02100
Will be ordered for you
Delivery time: 5 to 7 business days
Estimated shipping: Between November 23 and 24, 2026

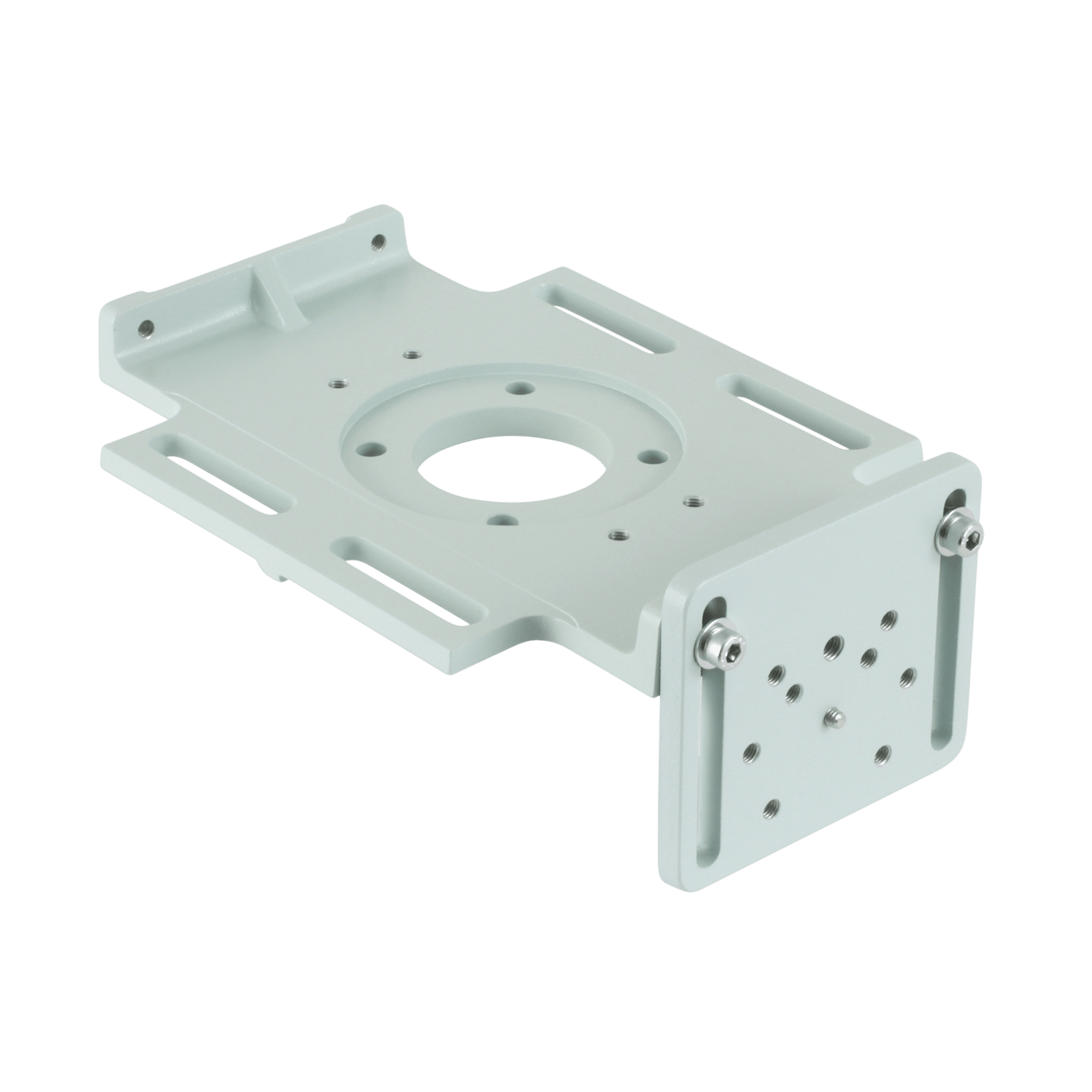

The L TMP02100 plate serves as an interface between the clamps of an optical tube and a Takahashi mount. The manufacturer intends it for use with the EM-400 and EM-500 models and also mentions the older JP-Z and NJP models. Examples of compatible instruments include the TOA-150 and Mewlon-300CRS: the adapter plate accommodates their clamps; it does not replace them.
The mount-side attachment uses four M10 screws. Four adjustment holes allow you to secure the clamps and make a slight adjustment to achieve balance. This mechanical adjustment is useful when the distribution of equipment changes; it does not increase the mount’s load capacity. Check the mounting holes in the official diagram before assembly.
An additional mounting plate holds accessories next to the optical tube. It features several M8 threads, and its mounting holes also allow you to adjust the position of the mount. The documentation lists the dimensions of this accessory plate as 138 × 120 mm. Select the fasteners based on the accessory and its mounting footprint; do not assume universal compatibility simply because M8 threads are present.
The data sheet describes a main board and an accessory board. It does not specify whether the clamps, optical tube, or equipment shown in an example assembly are included. The quantity of screws to be supplied remains to be confirmed: the four M10 screws mentioned are for mounting purposes only and do not represent a verified quantity.
| Features | Value |
|---|---|
| Reference | TMP02100 |
| Type | L-shaped turntable with accessory turntable |
| Compatible frames | Takahashi EM-400, EM-500, JP-Z, and NJP |
| Mounting on a frame | Four M10 screws |
| Adjusting the Clamps | Four lights that allow for a slight offset |
| Accessory turntable | 138 × 120 mm |
| Threads of the listed accessories | M8 |
Main reference identified. Detailed list of screws, fittings, or additional accessories not provided; do not infer anything from the photographs.
