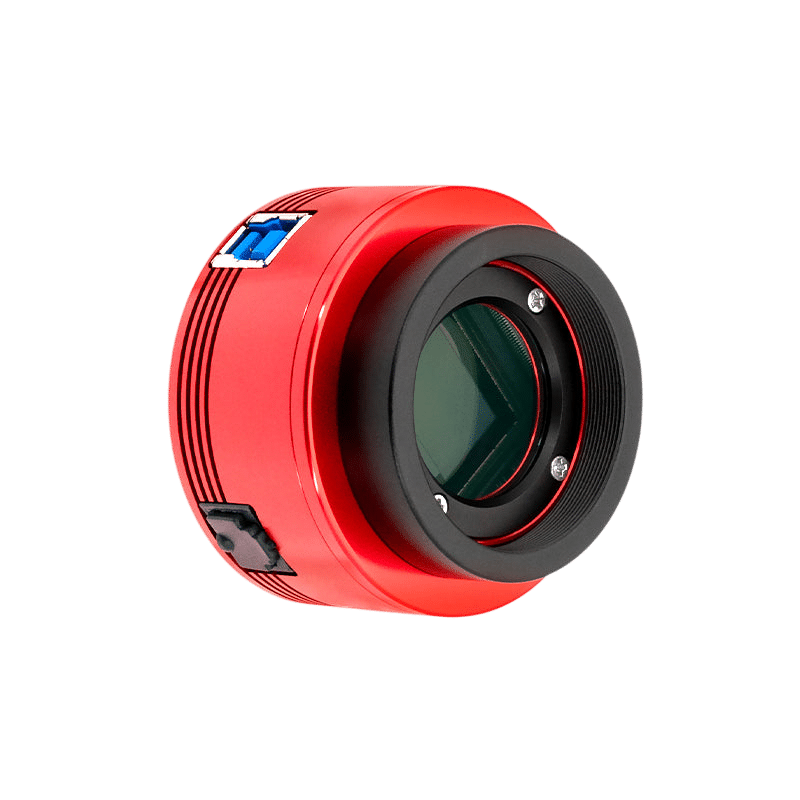

Color astronomical camera for astronomical imaging and compatible setups.
CHF 539.10incl. Swiss VAT
Part Number ZWO-A126661
Color astronomical camera for astronomical imaging and compatible setups.
The color version allows colors to be recorded within a single sequence, without the sequence of RGB filters required by a monochrome camera. The choice of an additional filter depends on the target, the optics, and the model’s protective window. For short-exposure acquisitions, the effective frame rate depends on the readout mode, the selected area, and the actual data throughput provided by the computer. Pixel size must be considered in relation to the focal length and turbulence conditions. Before installation, check the threading, the distance between the sensor and the mount, and the space occupied by the filters or the optical splitter. The sensor alone does not determine the final field of view: the instrument, the focal length, and any reducers also play a role. Take your calibration images using settings consistent with those used for observations. An astronomical camera provides no protection for solar observation: any use on the Sun requires a filter specifically designed for the instrument and installed correctly.
Documentation and Compatibility: ZWO official data sheet.
The ZWO ASI294MC is designed for planetary, lunar, and solar imaging (the Sun only with a suitable filter) using «lucky imaging»: you capture footage for a few minutes at up to 19 frames per second, then stack the best images. With 4.63 µm pixels, aim for an F/D ratio of approximately f/14 to f/23 for planetary imaging, using a Barlow lens if necessary. It is also suitable for electronic-assisted astronomy (EAA): short exposures stacked in real time on bright deep-sky objects.
The Sony IMX294 features a 4/3″ (19.2 × 13 mm) sensor with large 4.63 µm pixels and a well capacity of 63.7 ke⁻: plenty of signal per pixel and a wide field of view, all at a lower price than APS-C cameras.
No: It is powered by its USB cable. No external power source is required.
The camera's back focus is 6.5 mm. Mount: M42 × 0.75.
Yes: its window is only anti-glare. Add a ZWO 1.25" UV/IR-cut filter for sharp images and accurate colors. For planets low on the horizon, a ZWO ADC Atmospheric Dispersion Corrector significantly improves sharpness.
The manufacturer's manual (in English) is available here: ZWO ASI294MC Manual (PDF).
