.7x focal reducer for C8 EdgeHD
Optional 0.7× reducer for the EdgeHD 8-inch. Check the connections and focus with your camera.
CHF 389.00
CHF 4'299.00incl. Swiss VAT

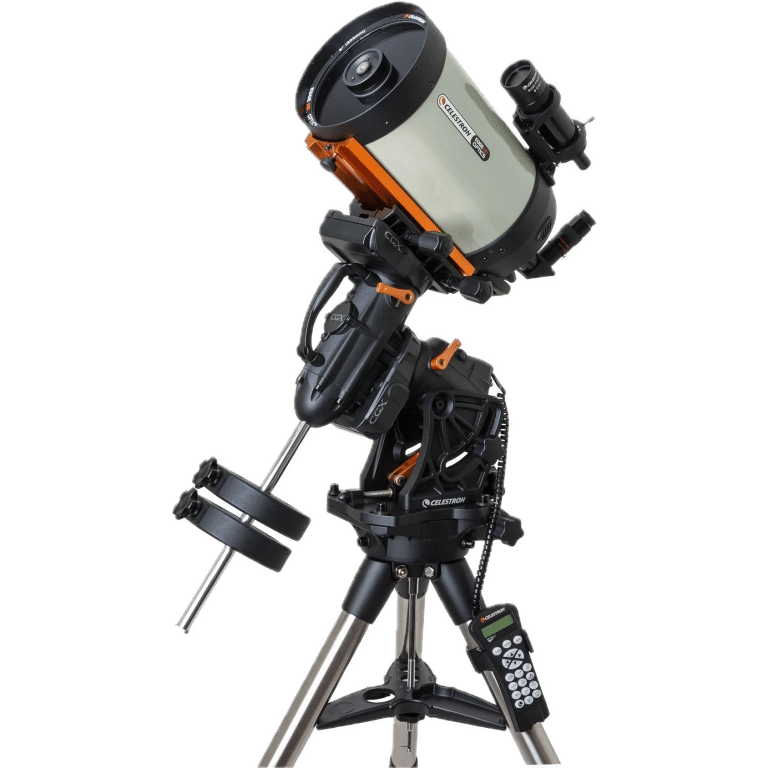

The CGX 800 HD combines two exceptional elements: the optical tube EdgeHD 8″, renowned for its razor-sharp images, and the sturdy equatorial mount CGX, designed for advanced visual observation and demanding astrophotography.
This is one of the most powerful and versatile sets for those wishing to enter the world of high-resolution and deep imaging with a reliable, upgradeable instrument.
The EdgeHD is an aplanatic Schmidt-Cassegrain offering a perfectly flat field and without coma over the entire image. Unlike standard optics, it guarantees sharp stars right up to the edges, making it an ideal choice for modern sensors, even large ones.
No shifting on EdgeHD models, which is very important for photography!
With its 203 mm and its focal length of 2032 mm (f/10), it offers impressive light-gathering power and outstanding performance on the Moon, planets, globular clusters, planetary nebulae and bright galaxies.
Treatments StarBright XLT maximize light transmission, ensuring bright, high-contrast, detailed images.
The frame CGX provides modern, stable mechanics designed for astrophotography. It supports up to 25 kg of instrumental load, features precise motors, sidereal, solar and lunar tracking, and all the necessary functionalities
to control the telescope remotely or via PC.
CGX highlights :
In short, the CGX 800 HD is a set for demanding astronomers:
exceptional stability, tracking precision, high-quality EdgeHD optics
and full compatibility for advanced astrophotography.
A complete instrument for exploring the sky in high definition.
The Moon in great detail and the planets: Jupiter’s bands and moons, Saturn’s rings. With a diameter of 203 mm, it captures a great deal of light: under a very dark sky, bright galaxies and nebulae become visible. Its maximum useful magnification is approximately 406× (2 × the diameter in mm); in practice, atmospheric turbulence often limits observation to lower magnifications.
No eyepiece is included with this model. The magnification is calculated by dividing the telescope's focal length (2032 mm) by that of the eyepiece: for example, a 25 mm eyepiece provides 81× magnification.
It is an imposing instrument: the tube weighs about 5.67 kg and is about 43.2 cm long, and the mount weighs about 20 kg (plus 8.7 kg for the tripod).
Rarely. The optics are adjusted at the factory; from time to time, a star test is sufficient: point the telescope at a bright star, defocus it slightly, and the rings should be perfectly concentric. If necessary, adjustments can be made using the screws on the secondary mirror.
Yes: The motorized equatorial mount tracks the movement of the sky, allowing for exposures of the Moon, the planets, and bright deep-sky objects. Its ST-4 autoguiding port then enables longer exposures.
CGX equatorial mount, CGX tripod, accessory plate, 2 x 11 lb (5 kg) counterweights, NexStar+ hand controller, 8 mm Allen wrench, 12 V DC power cable, hand controller holder.
No. The Celestron CGX mount does not come with a power supply (only a 12-V cable is included). Power requirements: 12 V DC, 4 A. For home use, we recommend the'Pegasus Astro 12 V 10 A power supply with a 5.5 × 2.1 mm plug : regulated 12.5 V output, high current reserve, and it will later be able to power a Pegasus hub (Pocket Powerbox) for the camera and the anti-fog heating elements.
Here are a few accessories we've selected for this model, depending on your needs.
Optional 0.7× reducer for the EdgeHD 8-inch. Check the connections and focus with your camera.
Choose the 8-inch ring for this tube. A 12-volt power supply or compatible controller must be purchased separately.
Motorized rear eyepiece holder that complements the mirror adjustment. Be sure to use the SC PL3600209 adapter; check the connections, back focus, load, and clearance with your mount and any reducer you may be using.
Optional motor for focusing the primary mirror. Check the shaft diameter, adapters, clearance, and 12-volt power supply. A rear eyepiece holder, if present, serves a different purpose and is not required for this motor.
Recommended diameter: 280 mm. Check the measurement and the mounting.
Recommended diameter: 250 mm. Check the measurement and the mounting.
