Our complete Deep Sky / Planetary setup

This pack is built around the powerful Uranus-M Pro (IMX585 monochrome)accompanied by a Player One 8-position filter wheela optical splitter (OAG) for precise autosteering, a high-performance guidance camera, and a complete set of Antlia LRGB and SHO filters. All you have to do is connect this set to your telescope and start capturing exceptional images.

Why choose this kit? Our 3 promises

• Total versatility Go from planetary to deep-sky imaging in minutes. Use LRGB filters for galaxies and clusters, and SHO filters to sublimate nebulae.
• Compact & Simple A coherent, optimized optical train to reduce the need for superfluous cables and accessories. Clean, efficient installation.
• Professional Performance Ultra-sensitive IMX585 mono sensor, 8-position filter wheel, OAG autoguiding and high-quality filters for outstanding image sharpness and contrast.

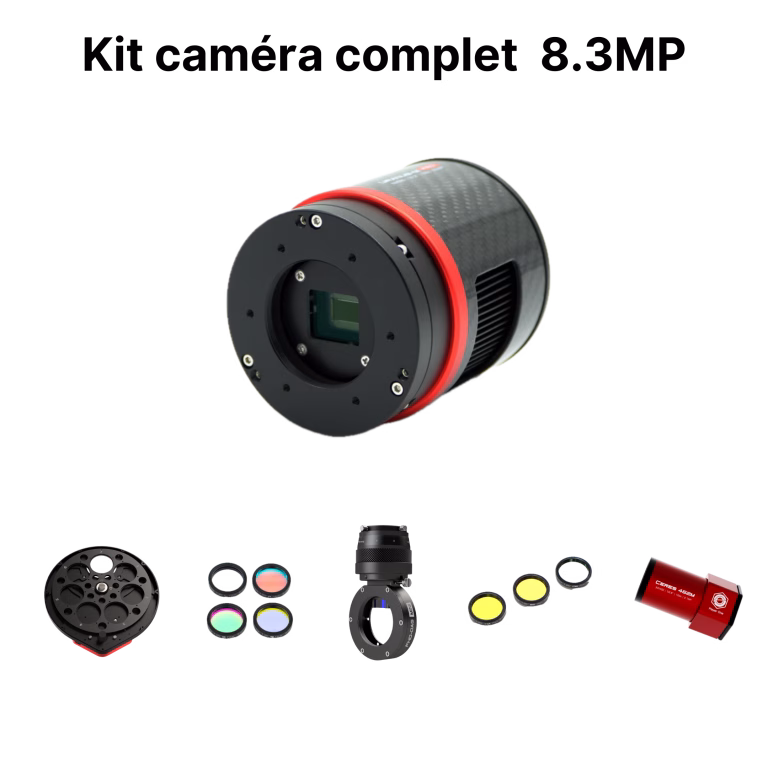

Detailed contents of the Astrophotography Kit

• Main camera : Uranus-M Pro (IMX585 monochrome)
• Guidance camera : Ceres-M (IMX462 monochrome)
• Filter wheel : 8×1.25″ Player One filter wheel
• Off-axis guidance : Optical Divider (OAG) for maximum rigidity.
• LRGB 1.25″ filters : LRGB set for natural colors.
• 1.25″ SHO filters : SHO 7nm narrowband set (S-II, H-alpha, O-III) for the Hubble palette.

Highlights in Detail

IMX585 Monochrome sensor: clean signal and fine detail

The sensor Sony IMX585 monochrome version is renowned for its high sensitivity and low readout noise. It excels at both fast exposures (planetary, lucky imaging) and long exposures (deep sky). The monochrome format maximizes quantum efficiency and the effective resolution.

8-position filter wheel: maximum flexibility

Eight positions for absolute comfort: L, R, G, B, S-II, Hα, O-III, and one free position. Switch from one target to another without ever touching the backfocus or dismantling your setup.

OAG guidance: perfectly round stars

The off-axis guidance system (OAG) uses the same optical path as the main camera, eliminating the need for a separate camera. differential bending. The result: finer stars and the possibility of longer single exposures.

LRGB & SHO filters: From natural colors to artistic palettes

Filters Player One offer exemplary flatness and anti-reflective coating. Get true colors for galaxies with the LRGB set and reveal nebula structures with the SHO set, even in the presence of light pollution.

Who is this setup for?

• Ambitious beginner A sound, scalable base that's easy to get to grips with, to avoid compatibility problems.
• Intermediate astronomer Standardize your workflow and stop wasting time mounting/dismounting your equipment between sessions.
• Advanced user The monochrome sensor's sensitivity and the OAG's precision maximize resolution, even at long focal lengths.

Getting started in 5 easy steps

1. Fix theOAG on the output of your field corrector or eyepiece holder.
2. Screw on filter wheel behind the OAG.
3. Mount the Uranus-M Pro camera in last position.
4. Insert the LRGB + SHO filters in the wheel and configure your software.
5. Connect the guidance camera to the OAG prism and focus.

Backfocus management (important)

This kit is optimized for standard 55 mm draft. We supply the necessary M42/M48 rings and can provide millimetre-accurate advice for your instrument. It is compatible with most apochromatic scopes and telescopes (Newton, SC, RC).

Acquisition tips

Planetary (Lucky Imaging)

• Use exposure times of a few milliseconds with moderate to high gain.
• Capture thousands of images in video format (SER) to freeze turbulence.

Deep sky (Long poses)

• Activate the guidance with OAG for exposures of 60 to 300 seconds.
• Visit LRGBFor the Luminance (L) layer, use a longer exposure time.
• Visit SHOYou can adapt the exposure time per channel according to the object being photographed.

Summary table of features

Frequently Asked Questions (FAQ)

Is this kit suitable for both short and long focal lengths?

Yes, its rigidity and OAG guidance make it suitable for all types of instrument, from wide-field to high-resolution planetary.

Can I add a light pollution filter?

Absolutely. The eighth free position of the filter wheel is perfect for an anti-PL or dual-band filter.

And what about the Sun?

Solar imaging is possible only with suitable safety equipment (not included). Contact us for advice.

Need help with compatibility?

Let us know your instrument and your marker: we'll provide you with a precise installation diagram and the list of bushes required for perfect integration.
