Takahashi Mewlon-210 – 210-mm Dall-Kirkham telescope

Takahashi Mewlon-210 Dall-Kirkham telescope, 210 mm diameter and 2,415 mm focal length at F/D 11.5, for planetary observation and imaging. Integrated 7×50 finder scope and Vixen-style male dovetail mount.

CHF 2'350.00incl. Swiss VAT

Part Number TLK21010

Will be ordered for you
Timeframe: Please contact us

Free shipping in Switzerland on orders of 200 CHF or more
Credit Card · TWINT · PayPal · Invoice · Klarna
Free pickup in Nyon · credit card or cash
3 recommended products for this model
Product description

Product description

Observing and Photographing the Moon and the Planets

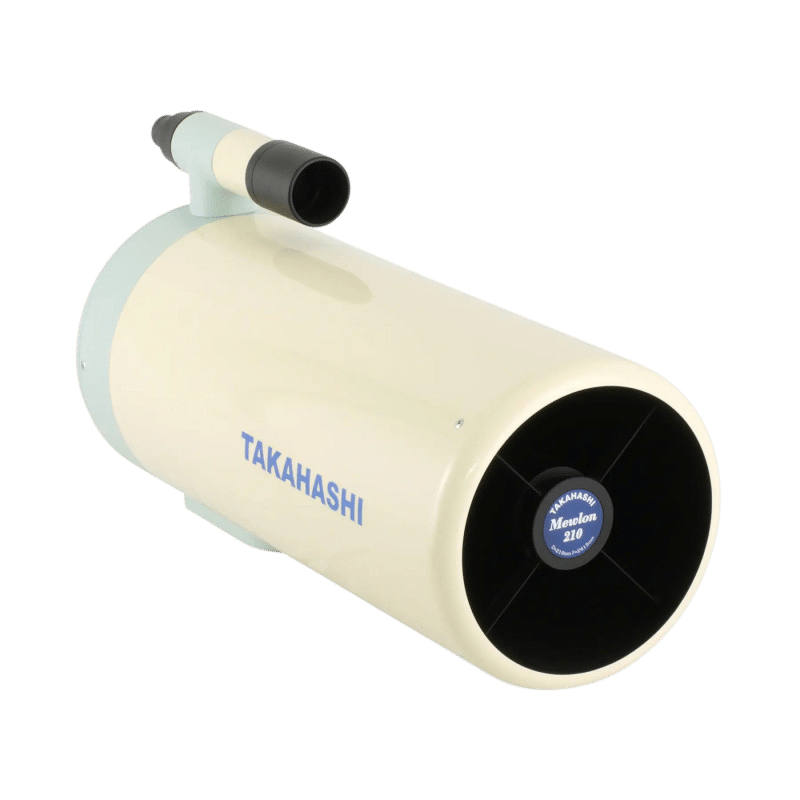

The Takahashi Mewlon-210 is a 210-mm Dall-Kirkham telescope. With a focal length of 2,415 mm and an F/D ratio of 11.5, it is particularly well-suited for planetary observation and imaging. It features an ellipsoidal primary mirror paired with a spherical secondary mirror, housed in a 700-mm-long tube.

Alignment and Focusing

Focusing is achieved by moving the primary mirror. The built-in 7×50 binoculars make aiming easier; their mount is also designed to serve as a carrying handle.

Assembly and Contents Included

This model includes the Mewlon-210 with its built-in finder scope and a Vixen-style male dovetail. The female dovetail is not included: make sure your mount has a compatible mounting.

Takahashi Mewlon-210 Assembly Diagram

Accessories for Your System

Back to the sections
Frequently asked questions

Frequently asked questions

What can you see with the Takahashi Mewlon-210?

The Moon in great detail, the planets (Jupiter’s bands, Saturn’s rings, Venus’s phases), and double stars: its long focal length naturally provides high magnification. Its 210-mm diameter also allows for viewing some bright clusters and nebulae. Its maximum useful magnification is approximately 420× (2 × the diameter in mm); in practice, atmospheric turbulence often limits observation to lower magnifications.

What eyepieces should you bring?

No eyepiece is included with this model. The magnification is calculated by dividing the telescope's focal length (2,415 mm) by that of the eyepiece: for example, a 25-mm eyepiece provides 97× magnification.

Is it easy to carry?

It can still be transported by car: the tube weighs about 8.1 kg and is about 70 cm long.

Should we aim it at him?

From time to time, especially after transport: Check the alignment of the two mirrors by observing a star (a bright star that is slightly out of focus, with concentric rings) and adjust it using the secondary mirror screws.

Can we take pictures?

This tube is sold separately: its photographic capabilities depend on the mount you choose. With its long focal length (2415 mm), it is primarily designed for planetary and lunar videography on a motorized mount. The tube weighs approximately 8.1 kg: take this into account when determining the mount’s load capacity.

Technical specifications

Technical specifications

Technical specifications

Optical type
Dall-Kirkham
Diameter
210 mm
Focal length
2,415 mm
Focal Ratio (f/D)
f/11.5
Maximum magnification
420 ×
Separating power
0.55″
Lens holder
Focusing by Moving the Primary Mirror
Backfocus
67.2 mm (metal back)
Corrector / Reducer Available
Yes
Tube length
70 cm
Tube weight
8.1 kg
Uses
Visual, Planetary
