Askar 80PHQ

Askar 80PHQ Astrograph

Discover the Askar 80PHQ astrograph, a state-of-the-art instrument in the PHQ family, designed for demanding astrophotographers looking for quality, performance and ease of use. With its advanced optical concept and refined design, the Askar 80PHQ is the ideal tool for capturing the wonders of the deep sky with unrivalled precision.

High Quality Optical Design

The Askar 80PHQ astrograph adopts a unique quadruplet (3+1) structure with two ED (Extra-low Dispersion) glass elements, which effectively reduces chromatic aberrations and guarantees images of exceptional clarity and sharpness. Unlike many other models, the 80PHQ's optics are an integrated combination of lenses, offering a more rational arrangement, better control of vignetting, and superior image quality. With a focal ratio of f/7.5, this astrograph offers a flat field without the need for back focus calculation, making installation and use extremely simple.

Unbeatable technical specifications

• Opening : 80 mm
• Focal length : 600 mm
• Optical structure : quadruplet APO air-spaced
• Full-format support : compatible with large sensors
• Central RMS radius : 3 μm for optimum image precision
• No need to flatter: thanks to its powerful flat optical design
• Reducer 0.76x (optional) : for greater flexibility by adjusting the focal length

Versatility with different threads and modes of use

The Askar 80PHQ is designed to adapt to a wide variety of configurations thanks to its multiple rear thread options:

• Available rear threads :
  • M76×1-M68×1
  • M68×1-M54×0.75
  • M54×0.75-M54×0.75
  • M54×0.75-M48×0.75 (with M48×0.75 internal filter thread)

Back Focus distances by operating mode :

• Imaging mode :
  • 115 mm (from M48×0.75 male thread)
  • 135 mm (from M54×0.75 male thread)
  • 155 mm (from M68×1 male thread)
  • 168.5 mm (from M76×1 male thread)
• Observation mode :
  • 148 mm (from end of 2" eyepiece holder)

Practical and aesthetic design

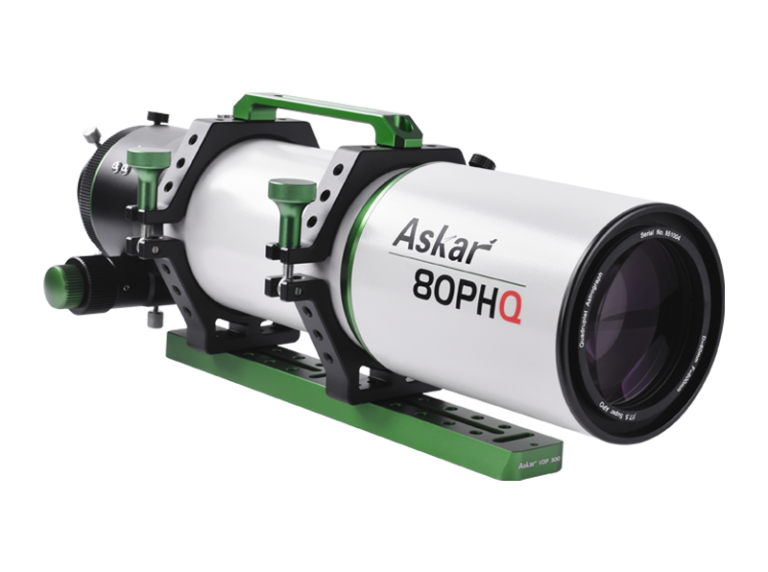

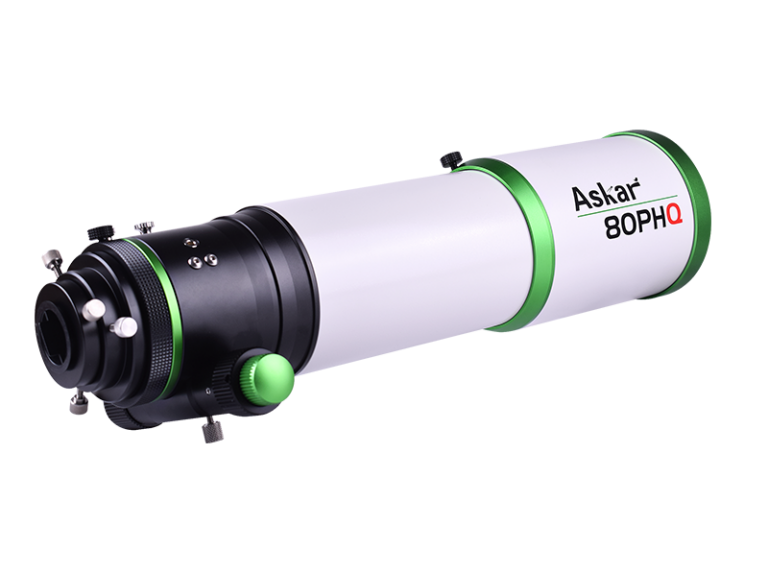

The Askar 80PHQ astrograph features an ivory finish, offering a pleasant-touch surface and a modern look. Its lightly textured surface increases grip, preventing the telescope from slipping. CNC-machined, clamshell-style aluminum tube rings hold the optics firmly in place. The green color of the caps, handles, locking screws and other details adds a touch of vitality to the instrument, while recalling the iconic aesthetics of the PHQ series.

For user comfort, the 80PHQ is equipped with a robust 3-inch rack-and-pinion eyepiece holder, with 1:10 precision adjustment for smooth, extremely accurate focus adjustment.

Dimensions and configuration options

• Total length :
  • 450 mm (with 1.25" eyepiece holder and retracted mist guard)
  • 540 mm (with 1.25" eyepiece holder and extended mist guard)
  • 480 mm (with 4-piece adapter and retracted fog shield)
  • 570 mm (with 4-piece adapter and extended fog shield)

Features for Astrophotographers

• Retractable mist guard: for optimum protection and easy storage.
• 300 mm dovetail plate: for stable, versatile mounting on a variety of fixtures.
• Multifunctional handle: for easy transport and handling.
• 3-inch rack-and-pinion eyepiece holder: with precise 1:10 focus adjustment for pinpoint accuracy.

Why choose Askar 80PHQ?

The Askar 80PHQ is designed to offer a simplified astrophotography experience without sacrificing quality. Compared with the 107PHQ model (603 mm in length for 5.7 kg), the 80PHQ is more compact at 448 mm in length and weighing just 4.7 kg. This makes it ideal for those looking for a lightweight, portable telescope, with outstanding image quality and a flat field without complex back-focus calculations.

Explore the universe with the Askar 80PHQ - the perfect fusion of precision, flexibility and design. Available now from Deep Space Astronomy!
