Hα 7nm Pegasus filter - 2″ mounted

2-inch mounted photographic filter — Ha 7 nm. Manufacturer's part number: PEG-FLTR-2M-Ha.

CHF 208.26incl. Swiss VAT

Part no. FILTER-0015

Will be ordered for you
Delivery time: 5 to 7 business days
Estimated shipping: Between November 30 and December 1, 2026

Free shipping in Switzerland on orders of 200 CHF or more
14 days to request a return
Credit Card · TWINT · PayPal · Invoice · Klarna
Free pickup in Nyon · credit card or cash
Product description

Product description

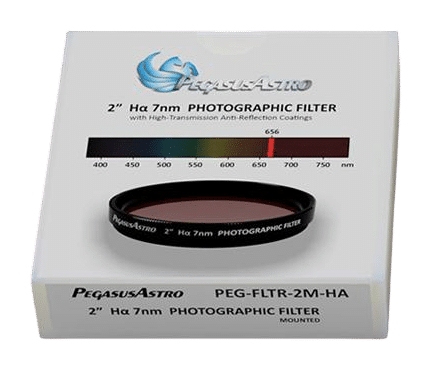

Pegasus Astro H-alpha (Hα) filter

The filter Pegasus Astro H-alpha (Hα) is a high-quality narrowband filter designed for astrophotography. Here are its detailed specifications:

Technical specifications

  • Diameter : 50.8 mm (2 inches)
  • Thread : M48 x 0.75 mm
  • Total thickness : 7.5 mm (5 mm filter body + 2.5 mm thread)
  • Bandwidth : 7 nm
  • Center wavelength: 656 nm
  • Transmission : Tave > 80% at 656 nm
  • Polishing : 1/4 wavelength
  • Coating : Anti-reflective multilayer
  • Type : Narrow-band interference filter

Features and benefits

  • Optimum transmission : The filter provides a transmission greater than 80% at a central wavelength of 656 nm, corresponding to the alpha-hydrogen emission line.
  • Narrow bandwidth : With a bandwidth of just 7 nm, this filter effectively isolates the Hα emission line, allowing for excellent separation of spectral details.
  • Parafocality: Like all Pegasus Astro filters, the Hα filter is parafocal with the other filters in the series, simplifying the image acquisition process.
  • Superior optical quality : The 1/4-wavelength polish ensures excellent image quality and optimal sharpness.
  • Anti-reflective coating : Multi-layer anti-reflective coating eliminates halos, ghosting and unwanted reflections.
  • Durability: The filter is designed to withstand scratches and temperature changes.
  • UV and IR blocking : The filter effectively blocks UV and IR wavelengths, improving image sharpness and reducing halos.

Astrophotography applications

  • Imaging emission nebulae : Ideal for capturing the details of nebulae rich in ionized hydrogen.
  • Reducing light pollution : The narrow bandwidth allows for effective imaging even in areas with high light pollution.
  • False color imaging : Used in the Hubble palette technique (SHO) to create spectacular false-color images.
  • High-resolution imaging : The narrow bandwidth produces high-contrast images that reveal fine details in nebular structures.

Conclusion

In conclusion, the filter Hα Pegasus Astro is a high-quality tool for specialized astrophotography, offering excellent transmission in a narrow band centered on the hydrogen-alpha emission line.

Reference and Configuration

Brand Pegasus Astro
Manufacturer reference PEG-FLTR-2M-Ha
Model / Configuration 2-inch mounted photographic filter — Ha 7 nm

How do I check for compatibility?

Before setting up your system, compare the exact part number, generation, and connection types of your equipment with the manufacturer’s documentation. An accessory from a different generation is not necessarily interchangeable.

Documentation: Pegasus Astro, manufacturer information. To verify a specific assembly, provide the part number PEG-FLTR-2M-Ha to Deep Space Astronomy.
