Askar 103APO apochromatic bezel

Askar 103APO presentation

Extremely popular with astrophotographers in search of a high-quality instrument capable of offering beautiful views during observation. The accessories give you access to 3 different focal lengths, and the diameter lets you enjoy exceptional views of the moon and planets. All at an unbeatable price!

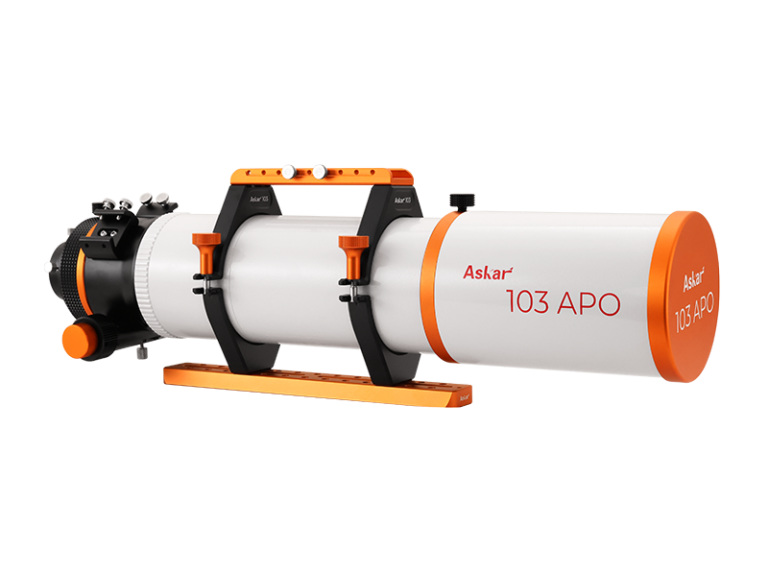

Discover the Askar 103APO astrograph, a telescope dedicated to enabling more amateurs to own high-performance equipment and explore the mysteries of the universe without worrying about price. This model features an advanced optical design that guarantees sharp images and faithful color reproduction.

Optical characteristics

• Opening : 103 mm
• Focal length : 700 mm
• Native focal ratio : f/6,8
• Optical design : Triplet APO air-gap lens incorporating an ED (Extra-low Dispersion) glass element to reduce chromatic aberrations.

This optical system minimizes chromatic aberration, guaranteeing images of exceptional clarity and excellent color rendition, even at high resolution.

Detachable and modular design

The Askar 103APO features a detachable OTA design, allowing the addition of optional accessories such as the 0.6x reducer. The latter lowers the focal ratio to f/4 for a wider field of view and shorter exposure times. The design also allows the use of a binoviewer for stereo observations.

Tube Design and Accessories Included

The Askar 103APO tube is equipped with two finder bases, positioned on either side of the focuser, to maximize accessory space without the need for disassembly. The multifunctional handle, designed with a special slot, can be used as a support for mounting a finder. The tube rings, weighing just 750 g, incorporate a hand screw for easy opening and locking, and the 290 mm Vixen dovetail plate ensures compatibility with most equatorial mounts.

Precise Focusing and Focuser Control

The Askar 103APO features a rigid 3.3" rack-and-pinion focuser, compatible with most motorized focusers. This system incorporates a high-precision 10 cm scale and 1:10 fine adjustment. What's more, the eyepiece holder features a 360° rotator with an enlarged locking screw to guarantee perfect alignment, even under load.

Parasite Light Protection and Unique Identification

To enhance image quality, the inside of the lens hood is lined with matte felt, and the inner walls of the main tube are coated with matte paint, with an internal baffle to reduce reflections. Each telescope is fitted with a unique identification ring, and the retractable mist-shield system, locked by CNC screws, protects the lens from external light and potential damage.

Advanced Accessories and Compatibility

• Accessories included: Askar 103APO optical tube (OTA), pair of tube rings, multifunctional handle, 290 mm Vixen dovetail plate, Oxford fabric case and instruction manual.
• Optional accessories : 0.6x reducer, 0.8x reducer, 1x corrector and EAF for automated focusing.

Conclusion

The Askar 103APO is designed to provide a superior shooting and observing experience. Whether you're an astronomy enthusiast or an astrophotographer looking to capture exceptionally precise images, this astrograph lets you explore the universe with ease and reliability, while benefiting from a modular design and outstanding optical performance.
