CHF 1'409
In stock with supplier (usual lead time approx. 10 working days)

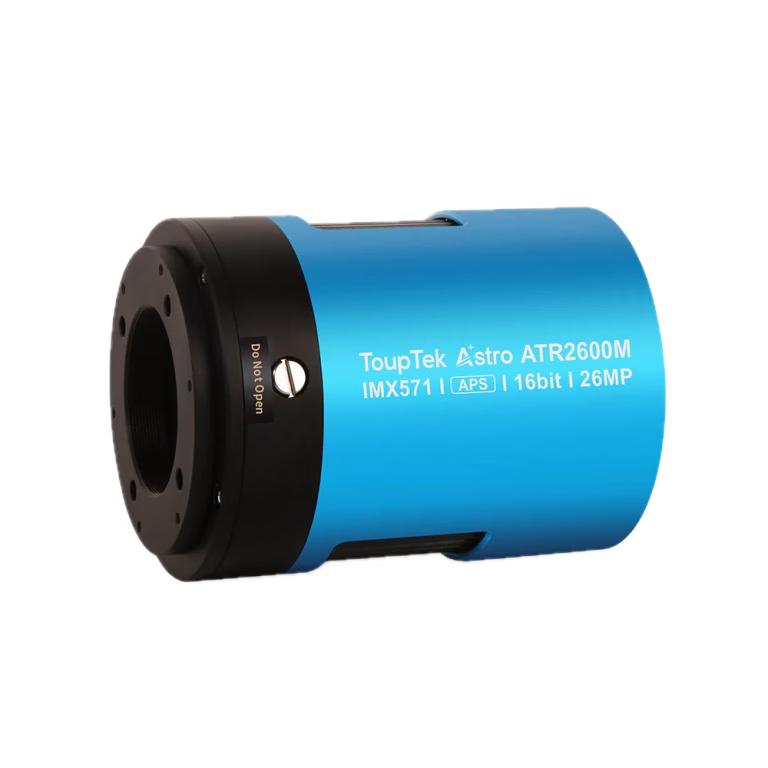

Visit ToupTek ATR2600M (ref. ATR3CMOS26000KMA) is the monochrome version of the ATR2600C. It is based on the Sony IMX571 APS-C, backlit (BSI), with a Native 16-bit ADCa ultra-low read noise (up to ~0.77 e- in Low Noise mode), a full-well up to 51 ke- (and up to 100 ke- in High Full Well mode), a 512 MB DDR3 buffer and a two-stage TEC cooling system down to -42°C below ambient - delivering deep, amp-glow-free monochrome images with exceptional dynamic range.
| Sensor | Sony IMX571 mono BSI (APS-C, 28.3 mm diag.) |
|---|---|
| Resolution | 6224×4168 (~26 MP) |
| Pixel | 3.76 µm |
| ADC | 16-bit (Low Noise / High Full Well) |
| Playback noise | ~0,77→2,77 e- |
| Pleine-puits | 51 ke- (100 ke- HFWH) |
| Max. dynamics | ~14 stops |
| Cooling | 2-stage TEC, ΔT down to -42 °C |
| Buffer memory | 512 MB DDR3 |
| USB 3.0 speed (full sensor) | 6.8 fps (16-bit), 13.2 fps (8-bit) |
| Anti-fog | Heater with adjustable levels (~5 W) |
| Assembly | M42×0.75 + 2″ adapter |
| Backfocus | 17.5 mm |
| Interface | USB 3.0 / USB 2.0 hub |
| Power supply | 12 V ⎓ 3 A |
| Dimensions / Weight | Ø 80 mm × H 107.1 mm - ≈ 577 g |
| Compatibility | ASCOM/INDI, N.I.N.A, SharpCap, PixInsight, etc. |
| Resolution | 16 bits | 8 bits |
|---|---|---|
| 6224×4168 | ~6.8 fps | ~13.2 fps |
| 3104×2084 | ~28 fps | ~37.1 fps |
| 2064×1386 | ~63 fps | ~110 fps |
If you're looking for a **cooled APS-C** monochrome camera with **real 16-bit**, **exceptional dynamic range**, **ultra-low noise**, **high-performance cooling**, **anti-fog**, and **zero amp-glow**, the **ATR2600M** offers outstanding performance on nebulae and galaxies, while remaining reliable and fluid thanks to its DDR3 buffer and scalable frame rates.
