CHF 1'989.00 – CHF 2'169.00Price range: CHF 1'989.00 through CHF 2'169.00

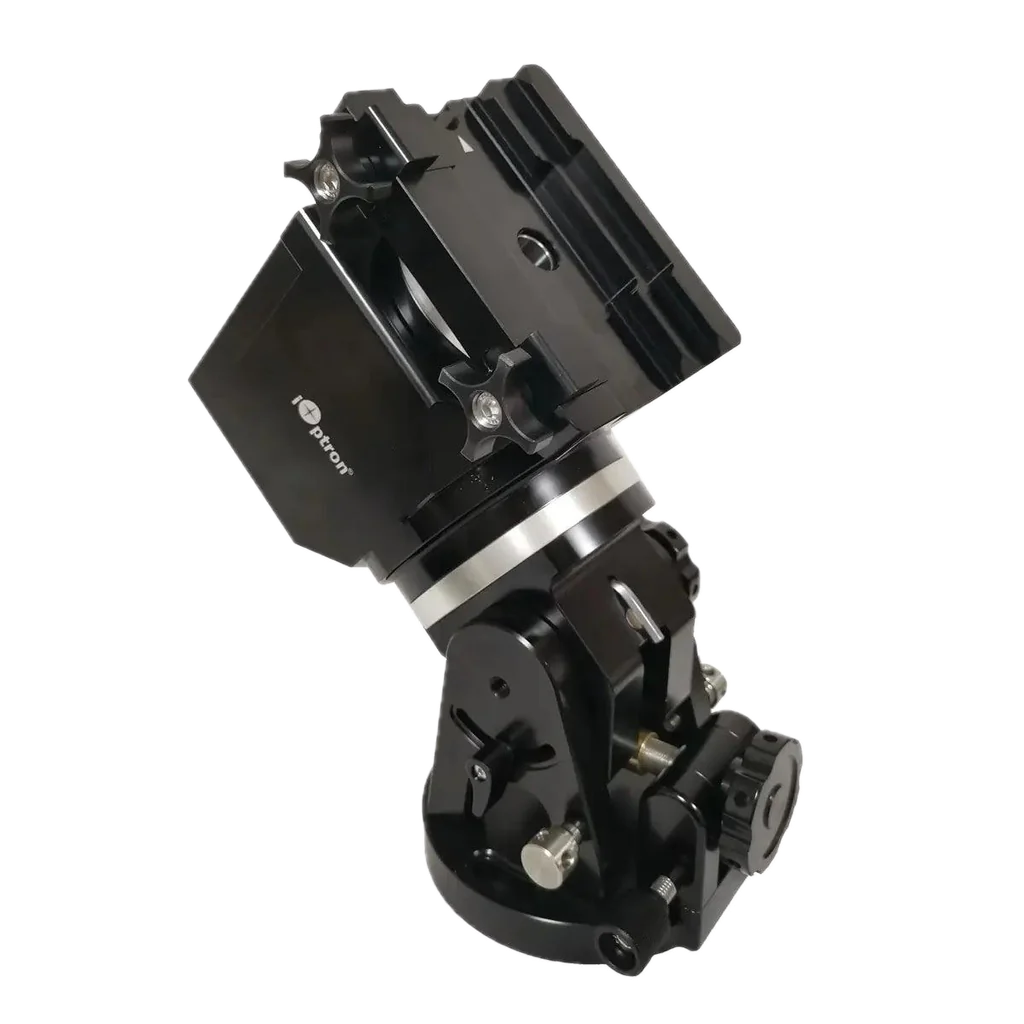

Visit HAE29C (and its EC) is the new generation of compact frames from iOptron featuring Strain Wave Gear harmonic technology. Designed to offer maximum performance in an ultra-light format (3.7 kg), it can support up to 13.5 kg of payload without counterweight. A veritable miniature titan, ready for visual observation or nomadic astrophotography.
The "C" versions integrate the main motherboard directly into the mount head, eliminating the need for a control box or racket. With the Integrated Wi-Fi and USB + 12V ports on dovetailcable management becomes simple and fluid. Control the mount with a smartphone, tablet, PC or even a Raspberry Pi.
The version HAE29C-EC embeds a high-resolution encoder on RA axis which provides such precise tracking that autoguiding becomes optional. It's the perfect choice for demanding astrophotographers who want to reduce hardware and calibration errors.
| HAE29C / HAE29C-EC specifications | |
|---|---|
| Mount type | Altazimutale / Equatorial harmonic |
| RA / DEC gears | Strain Wave Gear |
| Reduction ratio | RA: 480:1, DEC: 360:1 |
| RA encoder | Yes (EC version only) |
| Payload without counterweight | 13.5 kg |
| Payload with counterweight | 18 kg |
| Frame weight | 3.7 kg (with dovetail) |
| Periodic error | < ±18 arcsec |
| Max. travel speed | 6°/sec |
| Motors | Step by step |
| Operating temperature | -20°C to +45°C |
| Material | CNC-machined aluminum |
| Finish | Black anodized |
| Safety brake | Integrated electronic brake |
| Level | Present (bubble) |
| Control system | Commander, SkySafari, INDI |
| Racket | Optional (Go2Nova® 8411 OLED) |
| Power supply | 12V 5A - adapter supplied |
| Consumption | 0.6 A (tracking), 1 A (GOTO) |
| Communication ports | Wi-Fi and USB |
| Over-the-head ports | USB and 12V on dovetail |
| Self-steering port | Yes (ST-4) |
| Firmware update | Yes |
| Dovetail saddle | Double (Vixen and Losmandy-D) |
| Tripod | Optional |
| Counterweight rod | Φ20×200 mm (optional) |
| Counterweight | 4.5 kg (optional) |
| Carrying case | Included |
| Warranty | 2 years |
Visit HAE29C is the ideal mount for the modern astronomer: ultra-transportable, high-performance, with simplified cable management and impressive precision. By choosing the ECWith this system, you can achieve a level of tracking rarely achieved without autoguiding. Perfect for nomadic or semi-fixed installations with instruments weighing up to 13.5 kg.
Portable harmonic mount for astrophotography and visual observation: 13.5 kg without counterweights, 18 kg with counterweights, for a 3.7 kg head. Can be used in equatorial or azimuthal mode. Recommended capacity for astrophotography: 13.5 kg, or 75 % of the advertised load, to maintain precise tracking.
Version C: Built-in Wi-Fi and USB; controlled via the iOptron app, ASCOM, or INDI. Electronic brakes on both axes; AC adapter included.
No, for instruments weighing up to 13.5 kg. For weights above that and up to 18 kg, you’ll need to add a rod and a counterweight (Ø 20 × 200 mm, 3/8″-16 thread; rod sold separately). Available in our catalog: iOptron P-SGP-CWS 20 mm Counterweight Bar, iOptron 3006-10 4.5 kg Counterweight for 20 mm Rod.
The iOptron HAE29C is powered by 12 V DC, 5 A (5.5 × 2.1 mm plug); a power adapter is included. Power consumption: 0.6 A during tracking, 1 A during GoTo. The power supply is included. The included AC adapter is intended for indoor use; in the field, use a 12 V battery.
The iOptron HAE29C is sold without a tripod. In our catalog: iOptron MiniPier 8-inch Column Extension 8040-8. A column extension is recommended with a long tube, so that it does not touch the feet when aiming near the pole.
The iOptron HAE29C can be controlled using a smartphone or tablet via Wi-Fi, or a computer via USB (ASCOM, INDI). For autoguiding (ST4 port), a guide scope such as the 52 Scope guide or the Sky-Watcher EVOGUIDE-50ED is appropriate.
The iOptron HAE29C is available without accessories, with the Go2Nova hand controller, or with the iPolar (an electronic polar finder for quick alignment).
